Product sheet

Key features

  • Compact, fully enclosed for field use
  • Low profile for confined and hard-to-reach spaces
  • Supports MIG, flux-cored and metal-cored processes
  • Crane-rated lifting point and integrated handles
  • Tool-free quick connections on IC cable strain relief
  • Optional built-in gas flow meter

SKU MILmigmatic-ex-s-wire-feeder

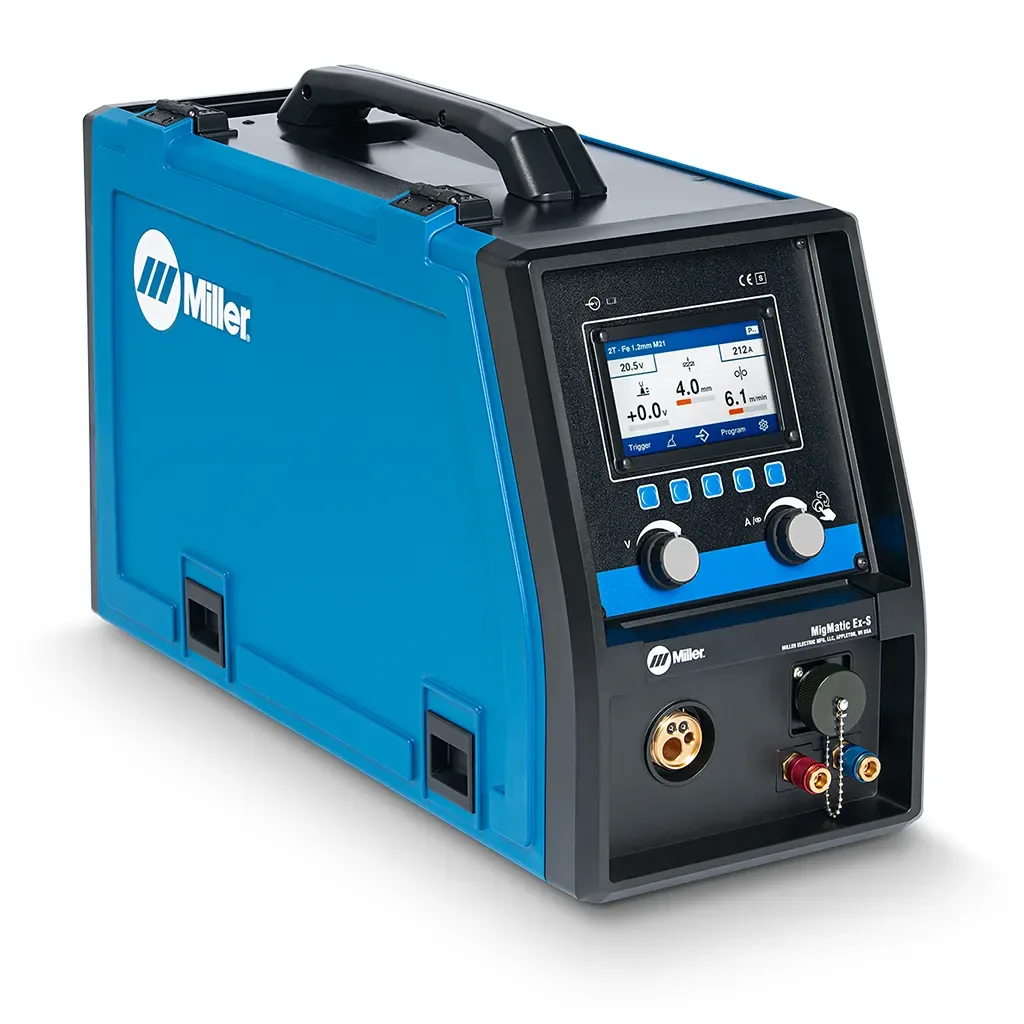

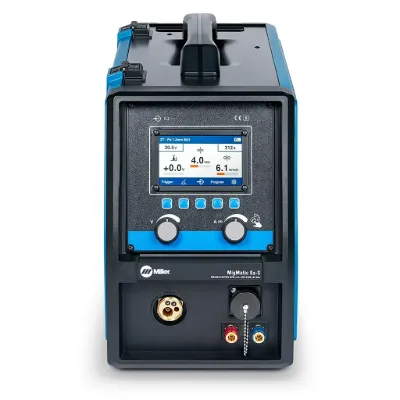

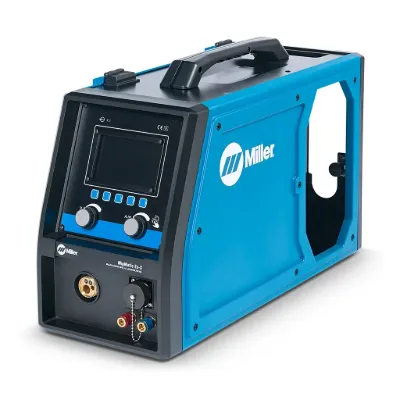

MigMatic Ex-S wire feeder

Auto Workshop equipment Metal machining

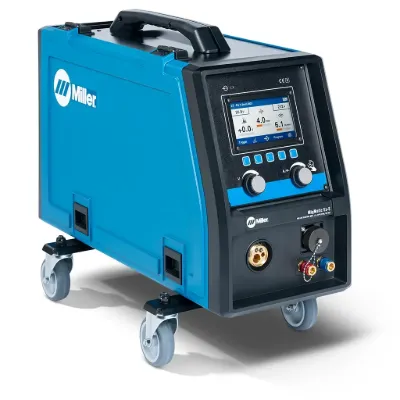

The MigMatic Ex-S is a compact, fully enclosed wire feeder designed for field use and demanding environments. With a height of less than 400 mm, it is suitable for use in confined and hard-to-reach areas. It is supplied with two integrated handles (one rated for crane use) and a third lifting point, and can be fitted with a wheel kit for increased mobility. The wire feeder features a robust IC cable strain relief with quick connections requiring no tools, an optional built-in gas flow meter, and protective stripes on the side panels. It supports MIG (GMAW), flux-cored (FCAW) and metal-cored (MCAW) processes, and is compatible with the MigMatic S400i, MigMatic MP S400iP, MigMatic S500i and MigMatic MP S500iP power sources. Typical applications include shipbuilding, construction, heavy manufacturing and rental. Wire feed speed is 1.5–20 m/min, supporting wire diameters from 0.6 to 1.8 mm with a maximum spool weight of 15 kg.

Process
MIG (GMAW), Flux-cored (FCAW), Metal-cored (MCAW)
Applications
Shipbuilding, construction, heavy manufacturing, rental
Input power
42 V AC, single phase, 2 A, 50/60 Hz
Welding circuit rating
39 V, 500 A, 60% duty cycle
Compatible power sources
MigMatic MP400iP, MigMatic S400iP**, MigMatic S400i**, MigMatic S500i** (**software version 2.00 or higher)
Wire feed speed
1.5 – 20 m/min
Wire type and diameter
0.6 – 1.8 mm, max spool weight 15 kg
Dimensions (H × W × L)
395 mm × 250 mm × 600 mm
Weight
12.7 kg
Brand
Miller

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
