Product sheet

Key features

  • Supports MIG, FCAW, Accu-Pulse®, HD-MIG and RMD®
  • EZ-Set simplifies setup based on material thickness
  • Accu-Pulse® compensates for variations in operator technique
  • Insight Centerpoint™ guides welders in real time
  • Integrates with enterprise IIoT solutions
  • Includes 3-year Miller True Blue warranty

SKU MIL907854003

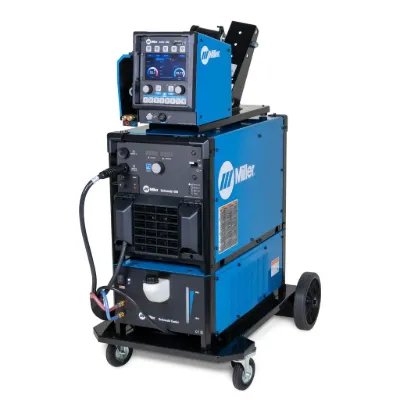

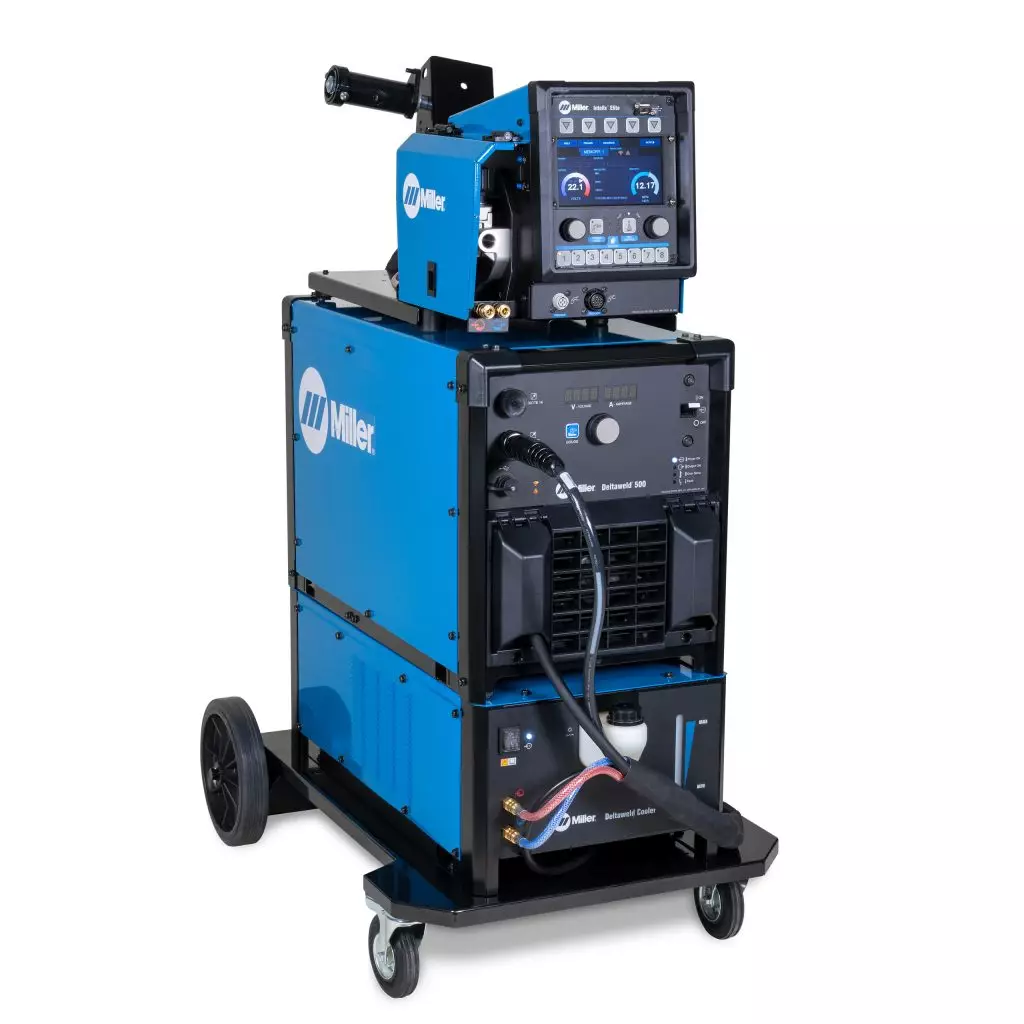

Deltaweld® 500 with Insight MIG/MAG Welding Machine

Auto Workshop equipment Metal machining

The Deltaweld 500 is a MIG/MAG welding system designed for advanced industrial manufacturing. It supports MIG (GMAW), flux-cored (FCAW), Accu-Pulse® MIG (GMAW-P), High-deposition MIG (HD-MIG) and RMD® processes. EZ-Set simplifies parameter setup based on material thickness, and Accu-Pulse® provides a forgiving arc that compensates for variations in operator technique. The system is supplied with Insight Centerpoint™, a solution that measures productivity, captures welder activities and guides welders through weld sequences via a real-time operator interface. This reduces training time and helps prevent missed welds. Insight Centerpoint™ can integrate with enterprise IIoT solutions. The machine has an amperage range of 30–650 A, rated output of 575 A / 43 V at 60% duty cycle, and input voltage of 400 V / 3 phases. Weight is 66 kg. Supplied with a 3-year Miller True Blue warranty.

Processes
MIG (GMAW), Flux-cored (FCAW), Accu-Pulse® MIG (GMAW-P), HD-MIG, RMD®
Input Voltage
400 V
Input Phase
3 phases
Frequency
50/60 Hz
Amperage Range
30 A – 650 A
Max Output Amperage
575 A @ 60%
Rated Output
575 A / 43 V @ 60% duty cycle
Max Open Circuit Voltage
41.5 VDC
Net Width
390 mm
Net Height (without feeder)
567 mm
Net Depth
804 mm
Net Weight
66 kg
Warranty
3 Years Miller True Blue Warranty
Brand
Miller

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
