Key features
- Synergic MIG/MAG with preset wire/gas lines
- Heavy-duty 4-roll drive for consistent wire feeding
- Graphical LCD panel – minimal training required
- Trigger program switch for up to 4 preset programs
- Energy-saving Fan-On-Demand™ cooling system
- Approved for heavy-duty welding in demanding conditions
SKU MIL059015053

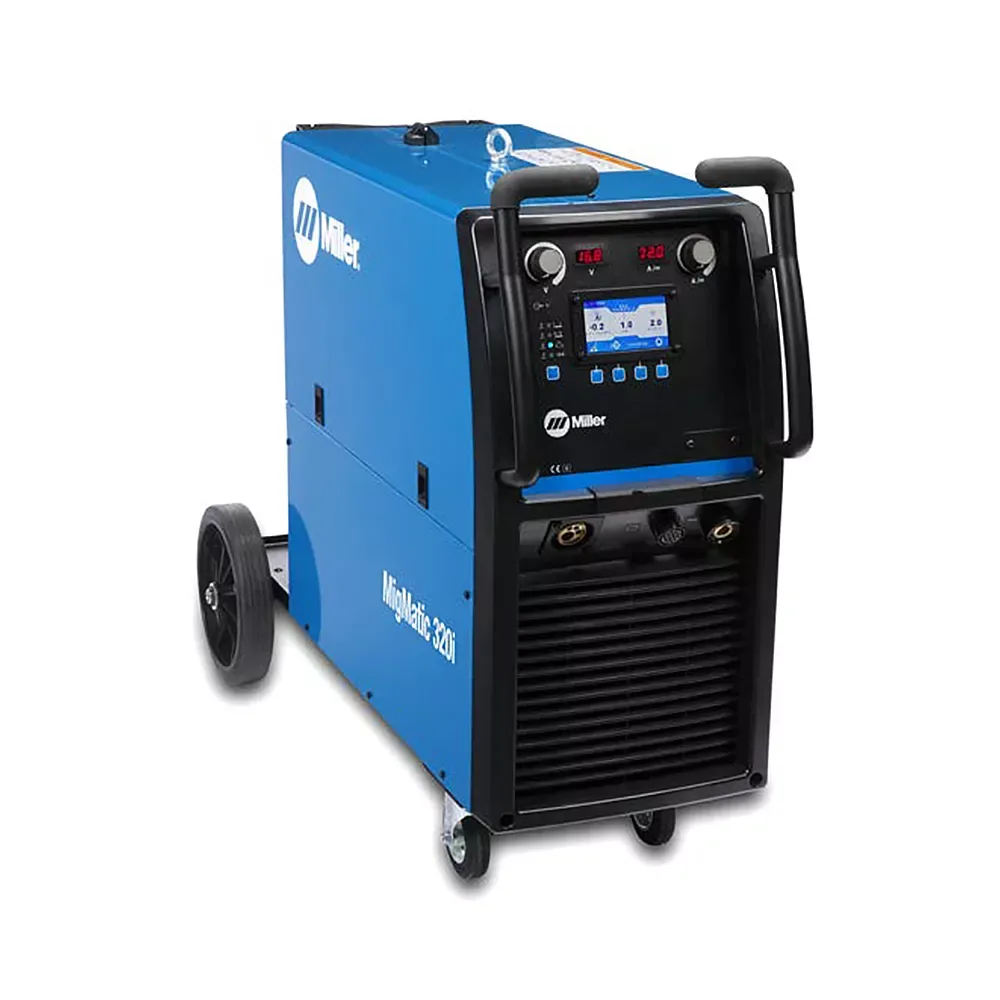

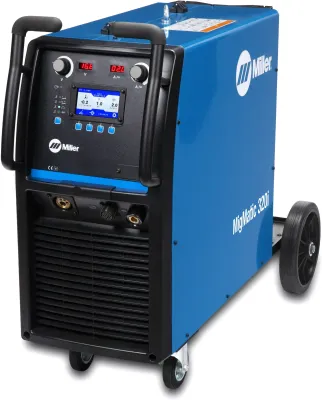

MigMatic® 320i MIG/MAG Welding Machine
The Miller MigMatic® 320i is a synergic MIG/MAG system featuring a heavy-duty 4-roll wire drive mechanism that delivers consistent and precise wire feeding for both solid and flux-cored wires. The graphical LCD panel allows quick and precise adjustment of weld parameters with minimal training required. Synergic lines for common wire/gas combinations are preset with start/stop parameters. Suitable for general fabrication, car repair, agricultural equipment, training schools, and repair and maintenance. Features include a trigger program switch recalling up to 4 preset programs, an energy-saving Fan-On-Demand™ cooling system that operates only when needed, and an amperage range of 15–320 A. The machine is tested and approved for heavy-duty welding under demanding conditions.
- Process
- MIG/MAG (GMAW), Flux-cored (FCAW)
- Input Voltage
- 400 V
- Input Phase
- 3 phases
- Input Hz
- 50/60 Hz
- Amperage Range
- 15 A – 320 A
- Max. Output Amperage
- 350 A
- Rated Output
- 320 A, 30 V at 35% duty cycle
- Max Open Circuit Voltage
- 70 VDC
- Weldable Wire
- 0.8–1.2 mm solid wire, cored wires
- Net Width
- 470 mm
- Net Height
- 830 mm
- Net Length
- 1070 mm
- Net Weight
- 57 kg
- Warranty
- 3 years
- Brand
- Miller
Request a quote for this product
Send us an enquiry and we'll reply with price and availability.
