Key features
- Synergic pulsed MIG/MAG system
- 4-roll drive for consistent wire feeding
- Suitable for aluminium, thin-plate and stainless steel
- Up to 4 programs recalled from torch trigger
- Fan-On-Demand™ reduces noise and contaminants
- Approved for heavy-duty industrial welding
SKU MIL059015052

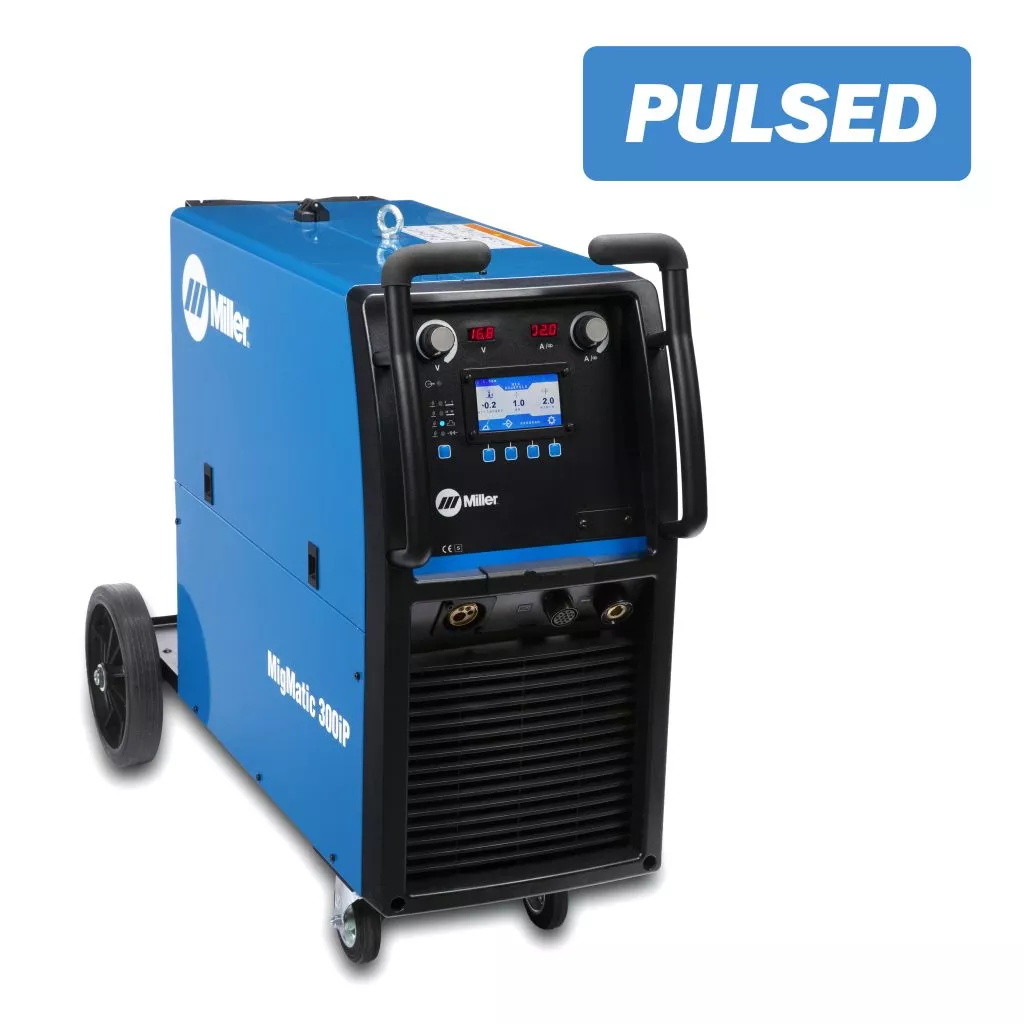

MigMatic® 300iP MIG/MAG Welding Machine
The Miller MigMatic 300iP is a synergic pulsed MIG/MAG system featuring a heavy-duty 4-roll wire drive mechanism for consistent and precise wire feeding regardless of wire type. Pulse MIG/MAG capability makes the machine well suited for aluminium and thin-plate mild and stainless steel welding. The machine has been tested and approved for heavy-duty industrial welding under demanding conditions. The user interface consists of a large, intuitive LCD panel allowing quick and precise adjustment of advanced weld parameters. The trigger program switch function enables recall of up to 4 preset programs from any standard MIG torch trigger, increasing productivity on complex workpieces. The energy-saving Fan-On-Demand™ cooling system operates only when needed, reducing noise and the amount of contaminants drawn through the machine. Warranty period is 3 years.
- Processes
- MIG/MAG (GMAW), Pulsed MIG (GMAW-P), Double Pulsed MIG, Flux-cored (FCAW)
- Input Voltage
- 400 V
- Input Phase
- 3 phases
- Frequency
- 50/60 Hz
- Amperage Range
- 15 A – 300 A
- Max. Output Amperage
- 330 A
- Rated Output
- 300 A, 29 V at 40% duty cycle
- Max Open Circuit Voltage
- 70 VDC
- Weldable material / wire
- Thin to thick, all materials, 0.8–1.2 mm solid wire, cored wires
- Net Width
- 470 mm
- Net Height
- 830 mm
- Net Length
- 1070 mm
- Net Weight
- 57 kg
- Warranty
- 3 years
- Brand
- Miller
