Key features
- Multiprocess: MIG/MAG, MMA and TIG Lift
- Synergic programs for common material and wire combinations
- 4-wheel drive wire feeder
- 4 programs directly accessible from front panel
- Program switching directly from torch trigger
- Running gear with integrated gas bottle shelf
SKU MIL3400000002

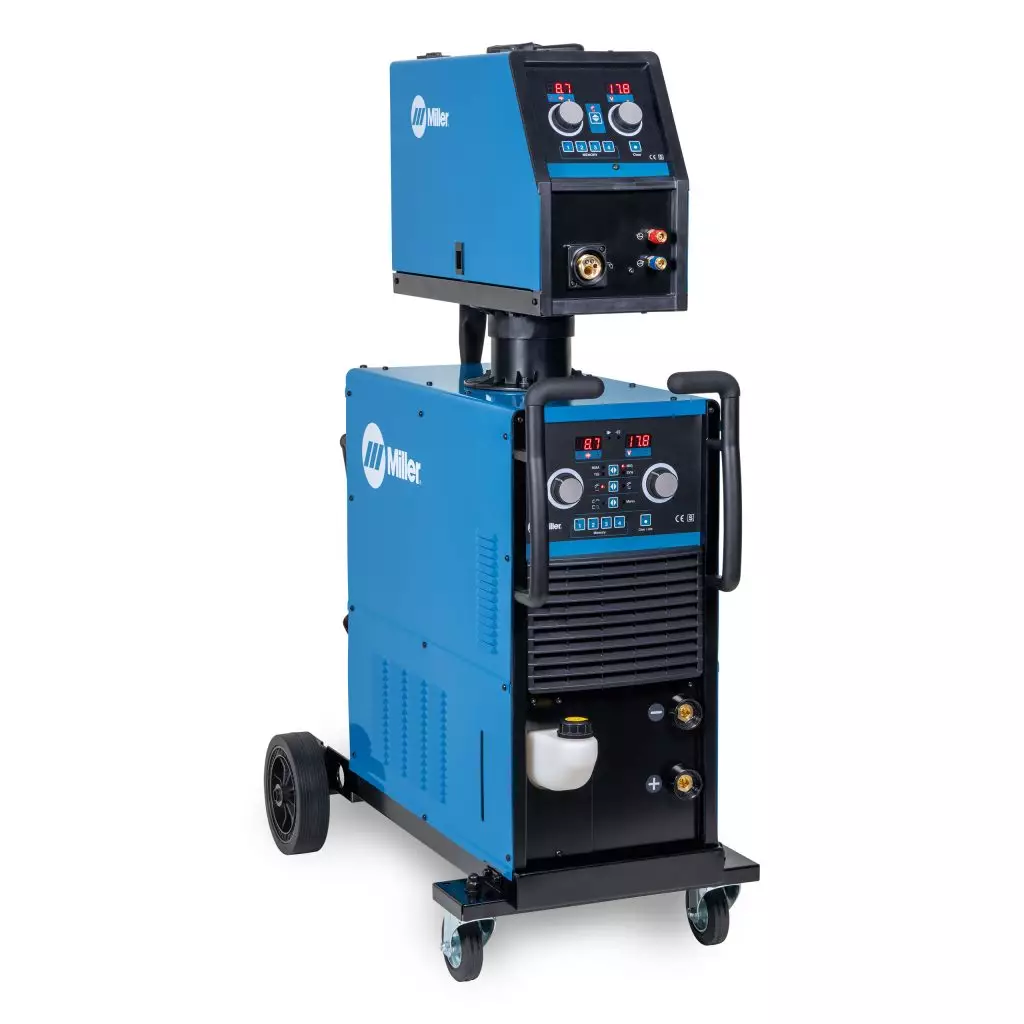

BlueFab® S400i Multiprocess Welding Machine

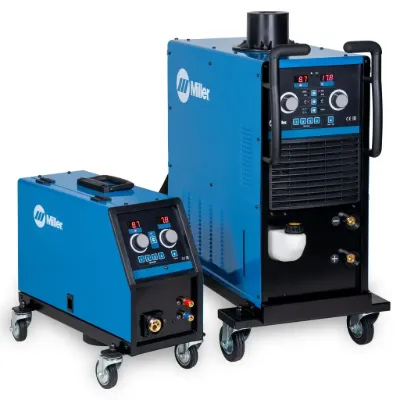

The BlueFab® S400i is an industrial multiprocess welding machine supporting MIG/MAG, Synergic MIG/MAG, DC MMA and DC TIG Lift processes. Based on inverter technology, it comes with a 4-wheel drive wire feeder, a running gear with integrated gas bottle shelf, and synergic programs for common material, wire and gas combinations. The operator has direct access to 4 pre-programmed or customised programs from the wire feeder front panel, and the trigger select function allows program switching directly from the torch trigger.
- Processes
- MIG/MAG, Synergic MIG/MAG, DC MMA, DC TIG Lift
- Input Voltage
- 400 V
- Input Phase
- 3 phases
- Input Hz
- 50/60 Hz
- Amperage Range
- 30 A – 400 A
- Max. Output Amperage
- 400 A @ 60%
- Rated Output
- 400 A / 34 V @ 60% duty cycle
- Max Open Circuit Voltage
- 45 VDC
- Net Width
- 487 mm
- Net Height (with feeder)
- 1300 mm
- Net Depth
- 990 mm
- Net Weight
- 58 kg
- Wire Diameter
- 0.6–1.6 mm solid, cored wires
- Warranty
- 3 Years Miller's True Blue Warranty
- Brand
- Miller
