Product sheet

Key features

  • Supports MIG/MAG, pulse, double pulse, FCAW, TIG and MMA
  • Synergic lines with preset start/stop parameters
  • Up to four programs recalled from torch trigger
  • Fan-On-Demand™ cooling and Wind Tunnel Technology™ protection
  • Tested for demanding industrial environments
  • 3-year Miller True Blue Warranty

SKU MIL3400000004

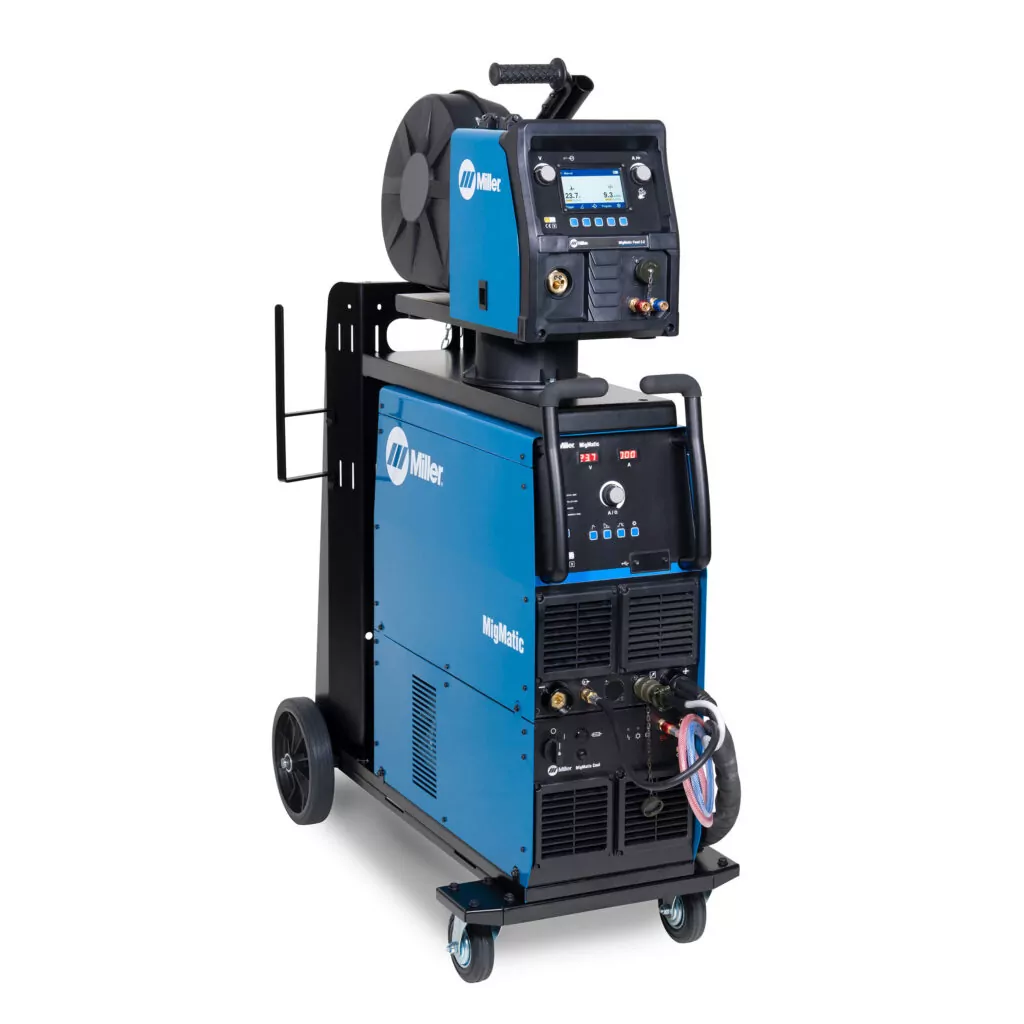

MigMatic® MP S500iP MIG/MAG Welding Machine

Auto Workshop equipment Metal machining

The Miller MigMatic® MP S500iP is a synergic pulsed MIG/MAG system designed for industrial welding. It supports MIG/MAG, pulsed MIG, double pulsed MIG, flux-cored (FCAW), and, in the MP version, Lift TIG and MMA. The power source covers an output range of 15–500 A and is tested for demanding industrial environments. The system features Fan-On-Demand™ cooling, Wind Tunnel Technology™ to protect electronic components from contaminants, and the new MigMatic Feed 2.0 wire feeder. Up to four preset programs can be recalled directly from the torch trigger. Synergic lines cover common wire/gas combinations with preset start/stop parameters. Suitable for general industrial fabrication, construction, shipbuilding, railcars and mobile machinery. Warranty period is 3 years (Miller True Blue Warranty).

Model name
MigMatic MP S500iP
Processes
MIG/MAG (GMAW), Pulsed MIG (GMAW-P), Double Pulsed MIG, Flux-cored (FCAW), Lift TIG (MP), MMA (MP)
Input voltage
400 V
Input phase
3 phases
Frequency
50/60 Hz
Amperage range
15 A – 500 A
Max. output amperage
500 A
Rated output
500 A, 34 V at 50% duty cycle
Max open circuit voltage
70 VDC
Net width
305 mm
Net height
530 mm
Net length
730 mm
Net weight
53 kg
Weldable wire diameter
0.8–1.6 mm solid, cored wires
Warranty
3 years (Miller True Blue Warranty)
Brand
Miller

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
