Key features
- Supports MIG/MAG, pulsed MIG, stick and TIG
- Synergic library for automatic parameter control
- Large graphical display for easy setup
- Compact and lightweight – only 16 kg
- Quick-change cast aluminium drive rolls
- 3-year warranty
SKU MIL059016014

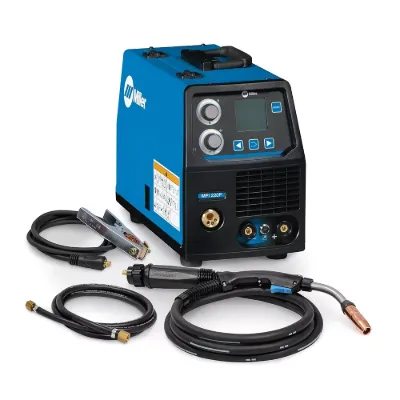

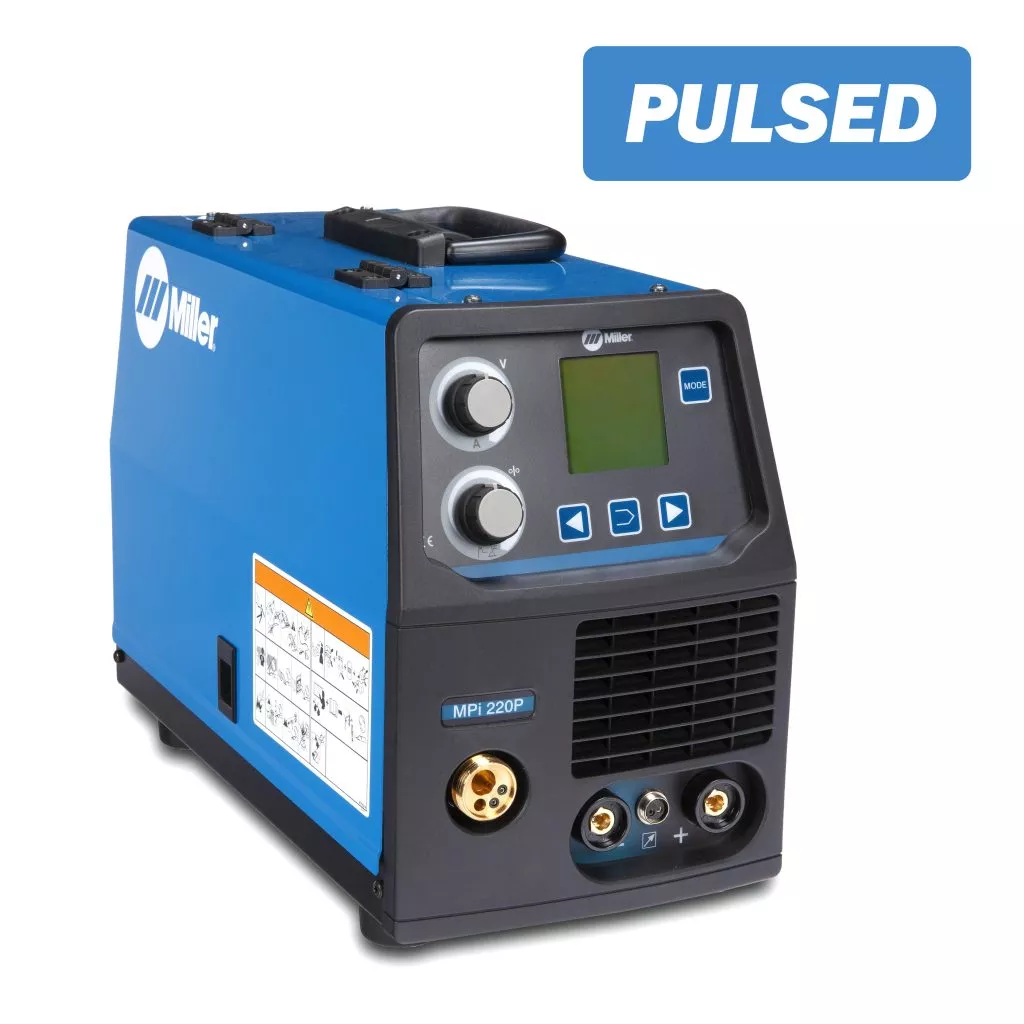

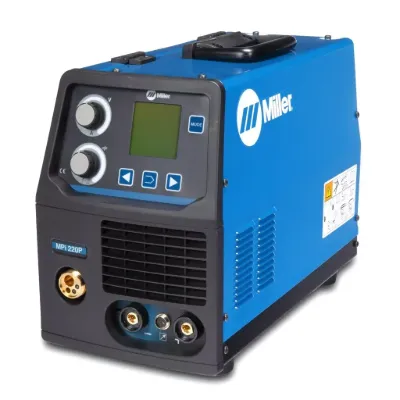

MPi 220P Multiprocess Welding Machine
The MPi 220P is a compact, lightweight multiprocess welding machine supporting MIG/MAG, pulsed MIG, stick (SMAW) and TIG (GTAW). It is intended for light fabrication, maintenance and repair, auto body work, and farm/home use. A synergic welding library automatically selects voltage and amperage based on the wire feed speed set by the operator. The machine features a large graphical display for straightforward process and parameter setup, a cast aluminium drive system with dual-groove quick-change drive roll, and built-in upslope/downslope for TIG and run-in/crater/burnback functions for MIG. Polarity changeover is accessible directly at the output studs. The MPi 220P runs on 230 V single-phase and delivers up to 200 A. It weighs 16 kg and comes with a 3-year warranty.
- Processes
- MIG (GMAW), Pulsed MIG (GMAW-P), Stick (SMAW), TIG (GTAW), Flux-cored (FCAW)
- Input Voltage
- 230 V
- Input Phase
- Single-phase
- Input Frequency
- 50/60 Hz
- Amperage Range – MIG
- 20–200 A, 15–24 V
- Amperage Range – Stick
- 5–200 A, 20.2–28 V
- Amperage Range – TIG
- 5–200 A, 10–18 V
- Rated Output – MIG
- 110 A at 17.5 VDC, 100% duty cycle
- Rated Output – Stick
- 100 A at 24 VDC, 100% duty cycle
- Rated Output – TIG
- 100 A at 14 VDC, 100% duty cycle
- Max Open Circuit Voltage – MIG
- 35 V
- Max Open Circuit Voltage – Stick/TIG
- 65 V
- Net Width
- 237 mm (9.3 in.)
- Net Height
- 365 mm (14.4 in.)
- Net Length
- 548 mm (21.6 in.)
- Net Weight
- 16 kg (35 lb.)
- Weldable Metals
- Steel, stainless, aluminium (thin to medium material)
- Warranty
- 3 years
- Brand
- Miller
