Key features
- Synergic MIG/MAG system
- Heavy-duty 4-roll drive for precise wire feeding
- Compatible with solid and flux-cored wire
- Fan-On-Demand™ reduces noise and contamination
- Up to 4 programs recalled from the torch
- Graphical LCD panel for easy parameter setup
SKU MIL059015051

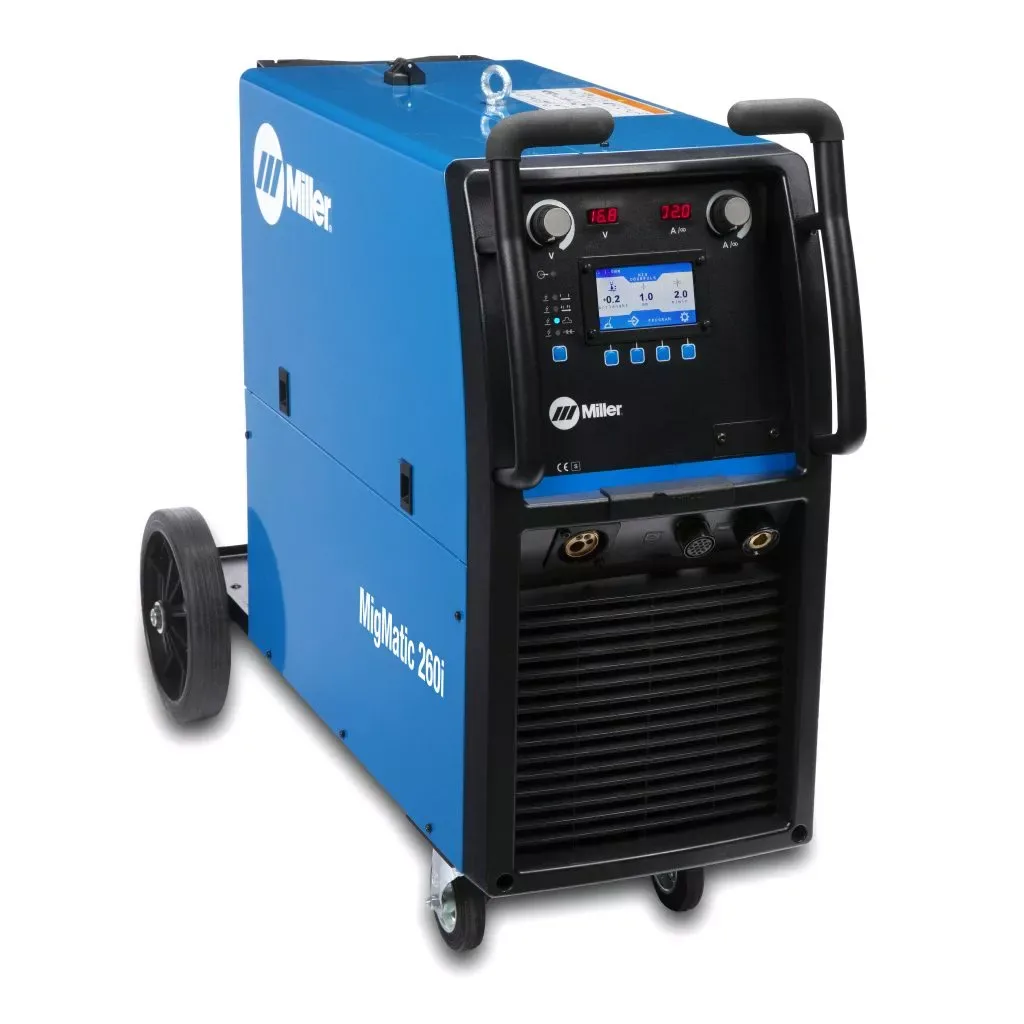

MigMatic® 260i MIG/MAG Welding Machine
The MigMatic® 260i is a synergic MIG/MAG system featuring a heavy-duty 4-roll wire drive mechanism that ensures consistent and precise wire feeding for both solid and flux-cored wires. The machine sets up quickly and the graphical LCD panel makes it straightforward to configure advanced weld parameters with minimal training. Suitable applications include general fabrication, car repair, agricultural equipment, training schools, and repair and maintenance. The unit is equipped with Fan-On-Demand™ cooling, which operates only when required, reducing noise and the ingress of contaminants. The trigger program switch function allows up to 4 preset welding programs to be recalled directly from the torch, increasing productivity on complex workpieces.
- Process
- MIG/MAG (GMAW), Flux-cored (FCAW)
- Input Voltage
- 400 V
- Input Phase
- 3 phases
- Input Frequency
- 50/60 Hz
- Amperage Range
- 15 A – 260 A
- Max. Output Amperage
- 285 A
- Rated Output
- 260 A, 27 V at 35% duty cycle
- Max Open Circuit Voltage
- 70 VDC
- Net Width
- 470 mm
- Net Height
- 830 mm
- Net Length
- 1070 mm
- Net Weight
- 57 kg
- Warranty
- 3 years
- Wire Diameter
- 0.8–1.2 mm solid wire, cored wires
- Brand
- Miller
