Key features

Complete set ready for operation
Removes rust, mill scale and contamination
Abrasive operates in closed circuit
Integrated separator cleans the abrasive
Wide range of optional accessories

SKU TEPKFC 250 S

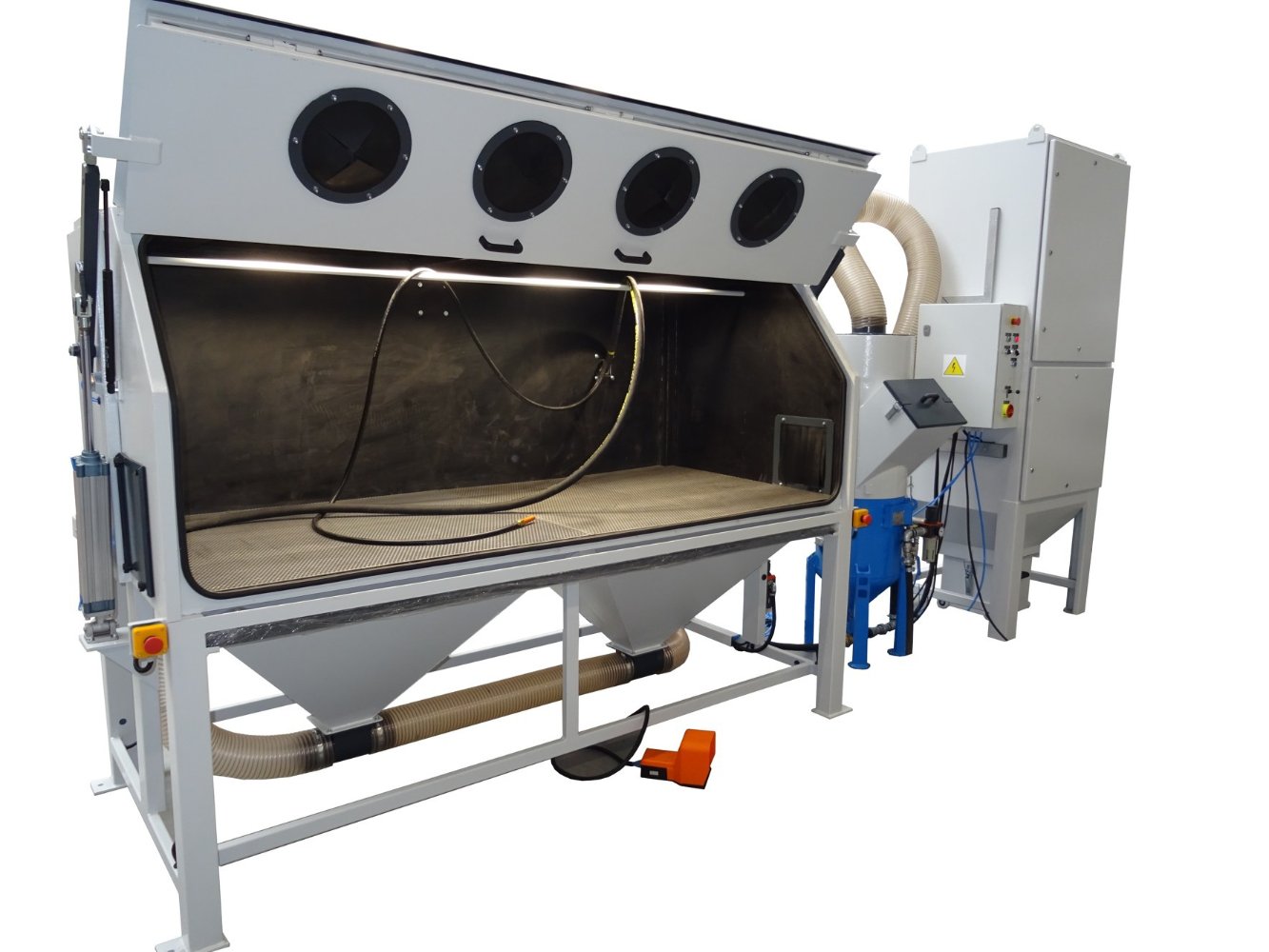

Cabinet blast cleaning unit KFC 250 S

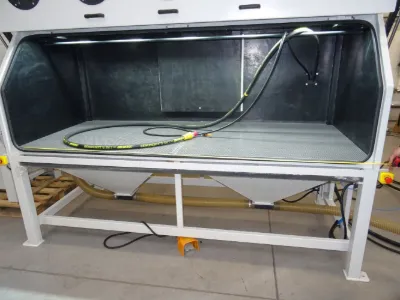

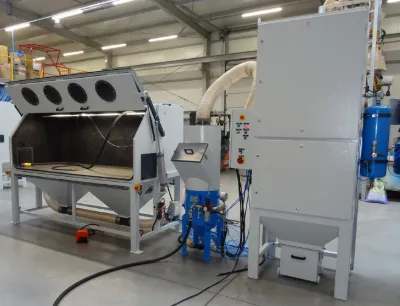

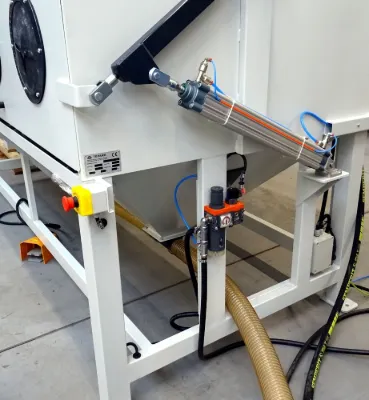

The KFC 250 S cabinet blast cleaning unit is a complete set for removing rust, mill scale and other non-sticky contamination from workpieces using abrasives such as steel grit, electrocorundum, glass beads and similar media. The abrasive operates in a closed circuit and is cleaned of contamination in the separator at each cycle. The set comprises four units: blasting cabinet KFC 250 S, dust filter unit FOS-6 N, abrasive separator SC-430 and pressure blasting machine KO-40. The system is complete and ready for operation after connection to electrical supply and compressed air. Optional accessories are available: airlocks for long workpieces, turntables (50 kg or 200 kg capacity), rubber-coated roller conveyor (200 kg) and pneumatic cylinders for door opening.

Internal working chamber dimensions (H × W × D): 900 × 2500 × 1100 mm
Lighting: 4 × 150 W LED, 230 V
Number of inspection windows: 3 pcs.
Number of hand holes: 4 pcs.
Table load capacity: 200 kg
Window protection: Triple: protective film, toughened glass, polycarbonate glass
Permitted abrasives (cabinet): Electrocorundum, glass beads, crushed steel grit max. G 50
Total installation length: 5500 mm
Cabinet width (external): 3500 mm
Dust filter unit – motor power: 3 kW / 400 V
Filter area (FOS-6 N): 2 × 21 m²
Filtration efficiency (FOS-6 N): 99.95 %
Suction inlets filter unit: 2 × Ø160 mm (side walls) + 1 × Ø200 mm (rear wall)
Filter cleaning: Automatic compressed-air pulse
Separator type (SC-430): Cyclone
Abrasive reservoir capacity (SC-430): 40 l
Pressure vessel capacity (KO-40): 40 l
Control – pressure blasting machine (KO-40): Pneumatic with decompression, foot pedal
Nozzle diameter standard (KO-40): Ø 6.5 mm, boron carbide
Compressed air demand, nozzle Ø 4.8 mm: 0.9–1.6 m³/min (0.35–0.85 MPa)
Compressed air demand, nozzle Ø 6.4 mm: 1.5–2.7 m³/min (0.35–0.85 MPa)
Compressed air demand, nozzle Ø 8 mm: 2.3–5.4 m³/min (0.35–0.85 MPa)
Compressed air demand, nozzle Ø 9.5 mm: 3.2–7.8 m³/min (0.35–0.85 MPa)
Compressed air demand, nozzle Ø 11 mm: 4.3–9.0 m³/min (0.35–0.85 MPa)
Compressed air demand, nozzle Ø 13 mm: 5.7–12.1 m³/min (0.35–0.85 MPa)
Brand: Tepark

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.

Guides and usage

Velg riktig blåsemiddelCrushed glass is the all-rounder that handles most paint and rust. Glass beads give a clean matt finish in a cabinet, aluminium oxide is the hard, fast choice that survives many cycles, and soda is the only genuinely gentle option for thin panels and chrome. The rule behind it all: match the media to the substrate — never harder than it can take. And ordinary quartz sand is not an option: it is effectively banned in Norway because of the silicosis risk.
