Key features

Complete kit – ready for operation
Closed-circuit abrasive system
Cyclone separator cleans abrasive
Removes rust, scale and contaminants
Pressure blaster with remote control
Wide range of optional accessories

SKU KFC 250 S

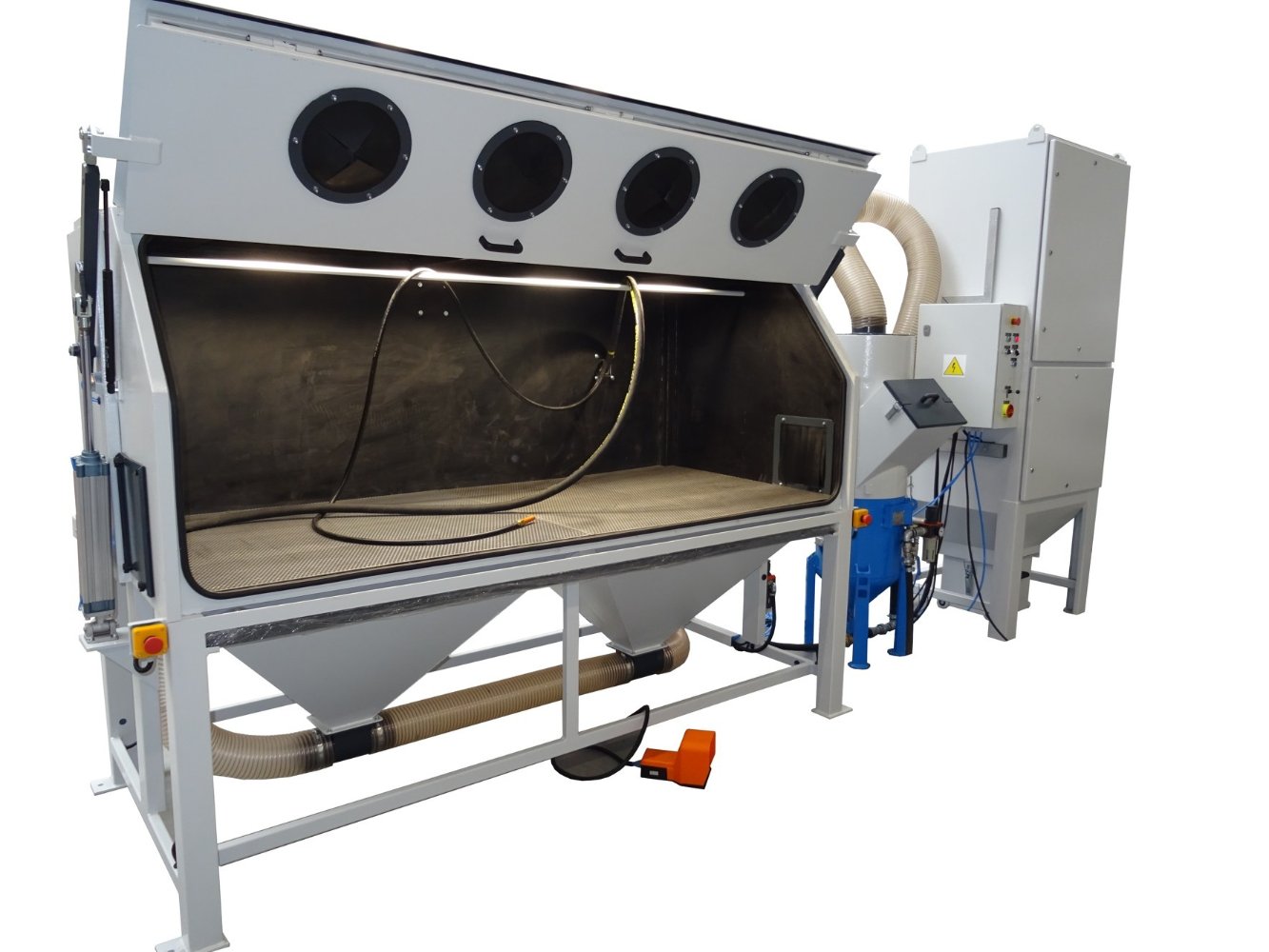

Blast Cabinet KFC 250 S – Complete Kit

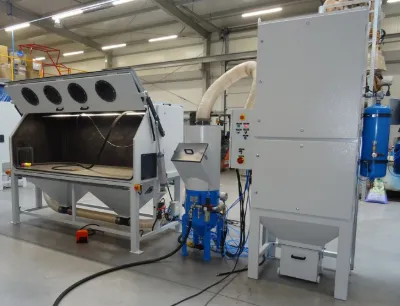

The KFC 250 S is a blast cabinet for removing rust, rolling scale and other non-sticky contaminants using abrasives such as steel shot, aluminium oxide and glass beads. The abrasive operates in a closed circuit and is cleaned of impurities in the cyclone separator with each cycle. The kit comprises four components: blast cabinet KFC 250 S, dust collector FOS-6 N with radial fan (3 kW), abrasive separator SC-430 and pressure sandblaster KO-40 (40 l) with remote control. The unit is complete and ready for operation after connection to the electricity supply and compressed air. Optional accessories include a lock for cleaning long parts (Longlog), rotary tables with load capacities of 50 kg or 200 kg, a polyurethane-coated roller conveyor (200 kg) and pneumatic actuators for door opening.

Interior dimensions of working chamber (H × W × D): 900 × 2500 × 1100 mm
Illumination: 4 × LED 150 W / 230 V
Number of inspection windows: 3
Number of armholes: 4
Window protection: Triple: protective foil, tempered glass, polycarbonate plate
Load capacity, bench: 200 kg
Interior lining: Rubber
Abrasive media types (cabinet): Corundum, glass beads, steel grit – max grain size G 50
Dust collector – fan power / voltage: 3.0 kW / 400 V
Dust collector – filter area: 2 × 21 m² (paper filter cartridges)
Dust collector – filtration efficiency: 99.95 %
Dust collector – suction inlets: 2 × Ø 160 mm (side walls) + 1 × Ø 200 mm (rear wall)
Abrasive separator – type: Cyclone separator
Abrasive separator – bin capacity: 40 l
Pressure sandblaster – tank capacity: 40 l
Pressure sandblaster – nozzle material / diameter: Boron carbide, Ø 6.5 mm
Pressure sandblaster – control: Pneumatic with decompression, foot switch
Total installed length (unit with equipment): 5500 mm
Total width (unit with equipment): 2800 mm
Compressed air demand – nozzle Ø 6.4 mm at 0.50 MPa: 1.7 m³/min
Compressed air demand – nozzle Ø 6.4 mm at 0.65 MPa: 2.2 m³/min
Brand: Tepark

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
