Key features

Fully automatic blast cycle
Siemens S7-1200 PLC controlled
Operator loads and unloads only
Abrasive separator and dust extractor included
Automatic filter cleaning

SKU KPI 115 SA

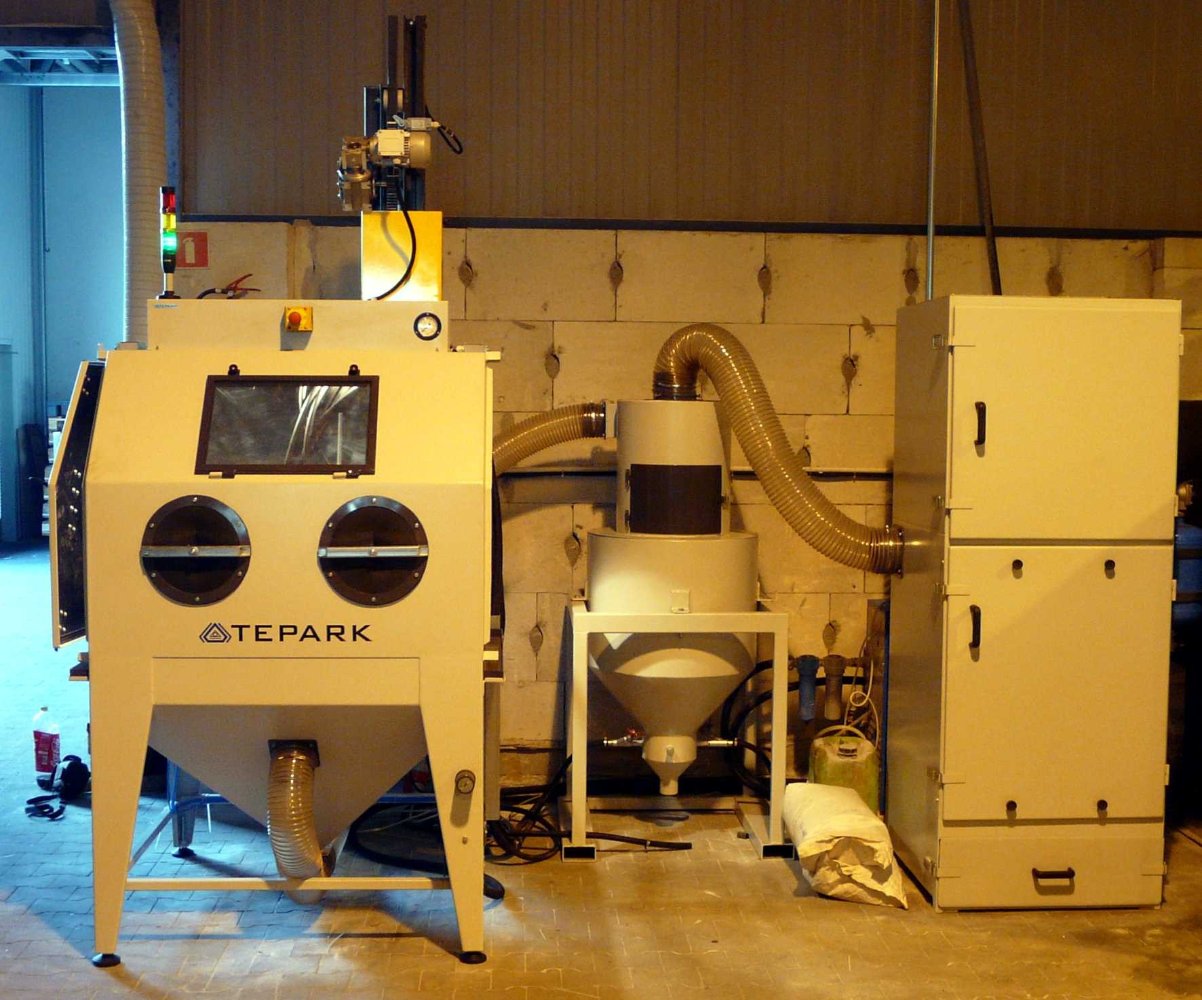

Automatic Blast Cabinet with Rotary Table and Satellites

Blast cabinet for automatic cleaning and surface structuring using abrasive media such as electrocorundum, fine steel grit, glass beads and similar. The work cycle is controlled by a Siemens S7-1200 PLC controller; the operator's tasks are limited to loading and unloading parts. The set includes the cabinet, an abrasive separator (SC 600) and a dust extractor (FOS 4 N) with automatic filter cleaning.

Internal dimensions of working chamber (H × W × D): 840 × 1150 × 1000 mm
Lighting: 2 × 50 W LED lamps
Interior lining: Rubber
Number of injector guns: 3 pcs PI 08 with boron carbide nozzle

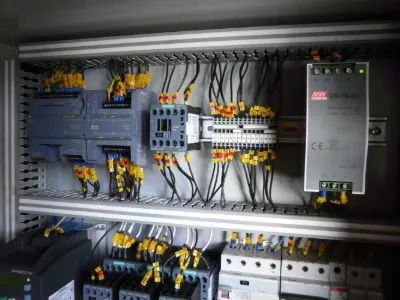

PLC controller: Siemens S7-1200
Air demand per gun: 500 dm³/min
Total air demand (3 guns): 1500 dm³/min

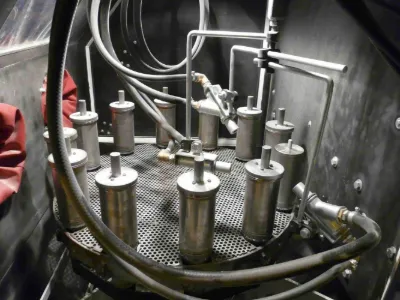

Rotary table diameter: 800 mm
Vertical actuator stroke for guns: 300 mm
Dust extractor – fan: 1.1 kW / 400 V
Dust extractor – filter area: 21 m²
Dust extractor – filtration efficiency: 99.95 %
Abrasive separator – type: Cyclone separator (SC 600)
Abrasive container – capacity: 100 dm³
Number of suction outlets on separator: 3, with regulating valves
Brand: Tepark

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
