Key features

Heavy-duty 3 mm steel sheet construction
Four configurations – injector or pressure blaster
Pressure version delivers ~4× greater cleaning efficiency
Optional abrasive separator keeps dust and abrasive separate
Suitable for fine abrasives such as corundum and glass beads

SKU KN 125 HD

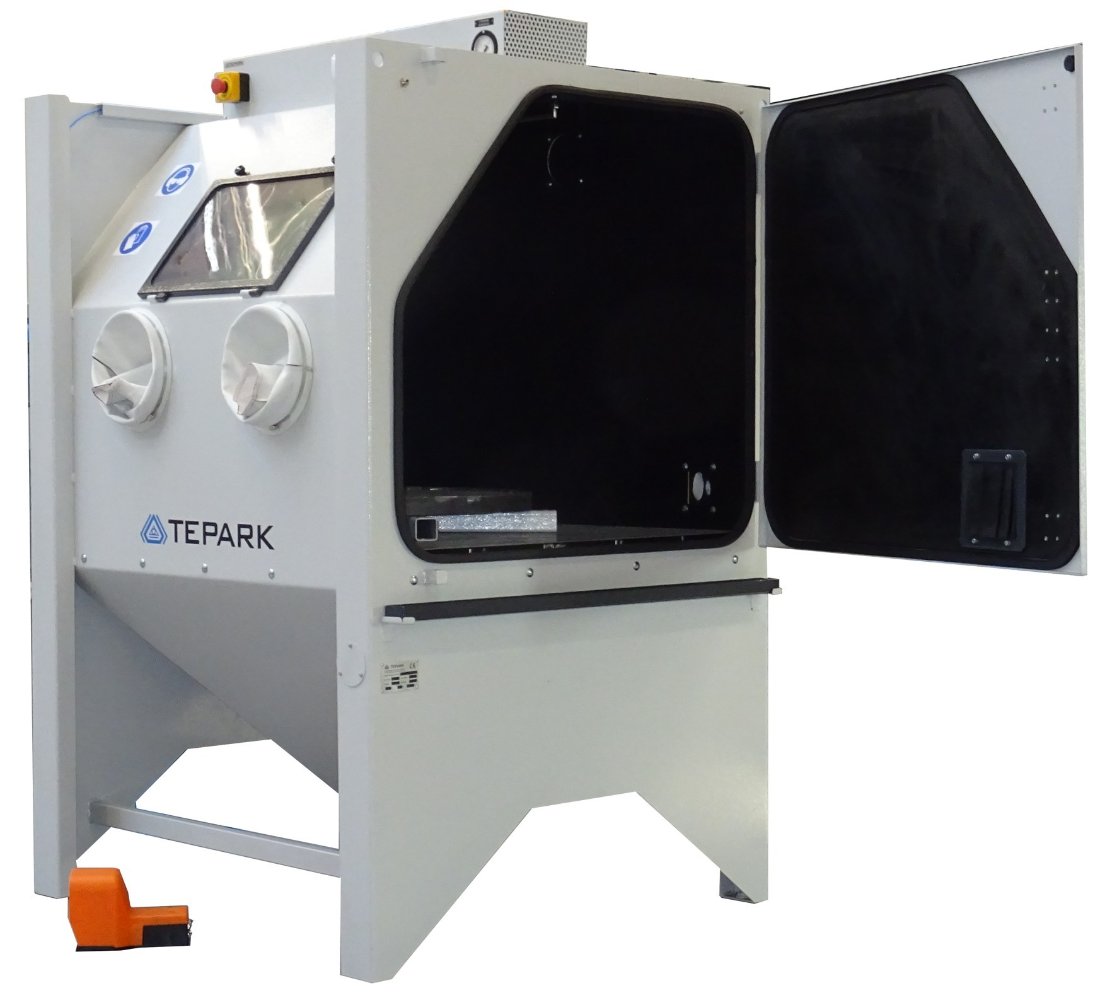

Blast Cabinet KN 125 HD Series

The KN 125 HD is a series of blast cabinets constructed entirely from 3 mm steel sheet. The series is offered in four configurations: sets 1 and 2 are equipped with an injector gun, while sets 3 and 4 use a pressure sandblaster. The pressure version delivers higher abrasive outlet velocity and approximately four times greater surface-cleaning efficiency compared with the injector version. Sets 2 and 4 include an abrasive separator that separates abrasive from dust and prevents fine abrasive from being drawn into the dust collector; this is recommended when using fine abrasives such as corundum or glass beads, and when cleaning heavily contaminated items.

Cabinet construction: 3 mm steel sheet
Interior working chamber dimensions (H × W × D): 950 × 1250 × 1000 mm
Outer dimensions (H × W × D): 1992 × 1251 × 1196 mm (incl. dust collector)
Table load capacity: 150 kg
Illumination: 2 × 50 W LED lamps
Set 1 – blasting gun (KNI 125 HD): Injector gun BNP with boron carbide nozzle
Set 1 – dust collector (FOS-2 N): Fan 0.55 kW / 400 V, paper filter cartridge 21 m², mechanical filter cleaning, 99.9% filtration efficiency
Set 2 – blast cabinet (KNI 125 HD S): Injector gun BNP with boron carbide nozzle, rubber lining, limit switches, pneumatic abrasive transport, air gun
Set 2 – dust collector (FOS-3 N): Fan 0.75 kW / 400 V, paper filter cartridge 21 m², compressed-air pulse self-cleaning, 99.9% filtration efficiency
Set 2 – abrasive separator (SCI 430): Cyclone separator, sieve, abrasive bin 40 l, polyurethane suction hoses
Set 3 – blast cabinet (KNC 125 HD SZ): Pressure sandblaster, rubber lining, limit switches, gravity feed to pressure tank, air gun
Set 3 – pressure sandblaster (KO-13-10): Pressure tank 13 l, pneumatic control with foot switch, MIKRO metering valve, pressure reducer with water separator, boron carbide nozzle Ø 6.5 mm
Set 3 – dust collector (FOS-2 N): Fan 0.55 kW / 400 V, paper filter cartridge 10 m², compressed-air pulse self-cleaning, 99.5% filtration efficiency
Set 4 – blast cabinet (KNC 125 HD S): Pressure sandblaster, rubber lining, limit switches, pneumatic abrasive transport, air gun
Set 4 – dust collector (FOS-4 N): Fan 1.1 kW / 400 V, paper filter cartridge 21 m², compressed-air pulse self-cleaning, 99.9% filtration efficiency
Set 4 – pressure sandblaster (KO-40): Pressure tank 40 l, foot switch control, MIKRO metering valve, pressure reducer with water separator, boron carbide nozzle Ø 6.5 mm
Set 4 – abrasive separator (SC-430): Cyclone separator, sieve, abrasive bin 40 l, polyurethane suction hoses
Set 4 – door on button (optional): 2 pneumatic cylinders, electropneumatic valve 5/3, two-hand control with safety relay, adjustable opening/closing speed
Air consumption – pressure cabinet, nozzle Ø 4.8 mm: 0.9–1.6 m³/min at 0.35–0.85 MPa
Air consumption – pressure cabinet, nozzle Ø 6.4 mm: 1.5–2.7 m³/min at 0.35–0.85 MPa
Air consumption – pressure cabinet, nozzle Ø 8 mm: 2.3–5.4 m³/min at 0.35–0.85 MPa
Air consumption – injector cabinet, air nozzle Ø 3 mm / blasting nozzle Ø 6 mm: 0.30–0.60 m³/min at 0.5–0.8 MPa
Air consumption – injector cabinet, air nozzle Ø 5.5 mm / blasting nozzle Ø 11 mm: 1.80–2.40 m³/min at 0.5–0.8 MPa
Brand: Tepark

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
