Key features

Automatic decompression and rapid refill
Integrated abrasive separator
Mechanical cartridge filter cleaning
High-pressure fan suction unit
Extensive suction system

SKU FW/KO-40

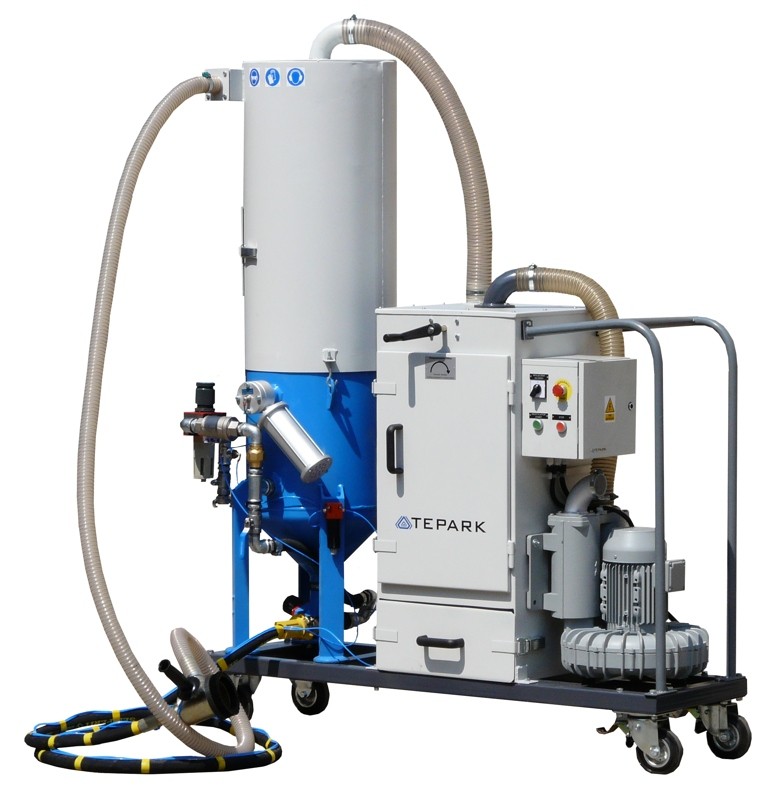

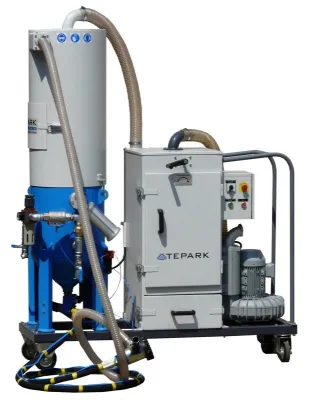

Vacuum sandblaster FW-KO-40

Sandblaster based on a 40-litre pressure tank, with an extensive suction system and abrasive separator. The control system automatically decompresses the tank and refills it quickly when work stops. The filter unit features mechanical cartridge cleaning. A high-pressure fan driven by a 2.2 kW three-phase motor serves as the suction unit.

Pressure tank capacity: 40 dm³
Working pressure: 0.2–1.0 MPa
Suction power unit: 2.2 kW / 400 V
Demand for compressed air: 800 (Ø5)–2500 (Ø6.5) dm³/min
Filter area: 7 m²
Weight without abrasive: 210 kg
Weight of dust-free head: 1.8 kg
Brush head diameter: 110 mm
Dimensions H × W × L: 1840 × 600 × 1560 mm
Warranty: 24 months
Certification: CE
Included equipment: Hoses, solid steel head with brushes and boron carbide nozzle, pressure reducer with water separator, 40 l pressure tank, remote control with tank decompression, dust collector with filter cartridge (7.8 m²), high-pressure fan (2.2 kW), abrasive separator, 2 brushes + set of spare nozzles
Brand: Tepark

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.

Guides and usage

Velg riktig blåsemiddelCrushed glass is the all-rounder that handles most paint and rust. Glass beads give a clean matt finish in a cabinet, aluminium oxide is the hard, fast choice that survives many cycles, and soda is the only genuinely gentle option for thin panels and chrome. The rule behind it all: match the media to the substrate — never harder than it can take. And ordinary quartz sand is not an option: it is effectively banned in Norway because of the silicosis risk.

Vacuum sandblaster FK-KO-25

Vacuum sandblaster with a closed loop for abrasive circulation, built on a pressure tank with a capacity of 25 litres. The control system with tank decompression provides fast automatic refilling of the tank when work stops. The unit features a large suction filter with a mechanical cleaning system for the filter cartridge. Suitable for engraving inscriptions in stone and ornaments on glass. Recommended abrasives are aluminium oxide, silicon carbide, glass beads and fine steel grit. Not recommended for cleaning steel structures, as dust-free operation requires the head to be held firmly against the surface, which is not achievable when cleaning sections or profiles. Supplied complete with hoses, solid steel head with brushes and boron carbide nozzle (service life approx. 1000 hours), pressure reducer with water separator, 25-litre pressure tank, remote control with tank decompression, dust collector with filter cartridge (7.8 m²), two suction units with commutator motors (1000 W each), 2 brushes and a set of spare nozzles. CE marked, 24-month warranty, full documentation and pressure tank passport.

View details

SKU FOR-1

Dust Collector FOR-1

The FOR-1 dust collector is designed for dust removal from sandblast cabinets and other processes that generate dry particulates, such as grinding, provided the dust does not form explosive mixtures. The cartridge filter is made of polyester tissue and provides filtration class M. With appropriate cartridges, the unit can also be used for dust extraction at welding stations.

View details

SKU FOS

FOS series dust collectors

FOS series dust collectors are designed for use with blast cabinets, and can also be used for dust extraction from other technological processes such as grinding, provided the dust-air mixture is not explosive. The filter uses a pleated filter paper cartridge with 99.95% filtration efficiency, allowing cleaned air to be recirculated into the working hall. The filter element is cleaned automatically by compressed air pulses. The lower part of the housing contains a dust drawer that can be removed without dispersing dust into the surroundings. The upper section houses a medium-pressure centrifugal fan controlled by a contactor with thermal protection. The fan chamber is lined with an acoustic mat to reduce noise. The series includes models FOS 2 N, FOS 3 N, FOS 4 N, FOS 5 N and FOS 6 N, covering airflow capacities from 600 to 3000 m³/h.

View details

SKU FS

FS type dust extractor

The dust extractor is designed for dedusting shot blasting chambers and other technological processes where air filtration is required and dusts do not form explosive mixtures. With appropriate filter cartridges, it can also be used for dedusting thermal cutting tables and welding stations. Filter cartridges are cleaned automatically with compressed air pulses, and the purified air may be returned to the interior of the hall.

View details

SKU KFC 250 S

Blast Cabinet KFC 250 S – Complete Kit

The KFC 250 S is a blast cabinet for removing rust, rolling scale and other non-sticky contaminants using abrasives such as steel shot, aluminium oxide and glass beads. The abrasive operates in a closed circuit and is cleaned of impurities in the cyclone separator with each cycle. The kit comprises four components: blast cabinet KFC 250 S, dust collector FOS-6 N with radial fan (3 kW), abrasive separator SC-430 and pressure sandblaster KO-40 (40 l) with remote control. The unit is complete and ready for operation after connection to the electricity supply and compressed air. Optional accessories include a lock for cleaning long parts (Longlog), rotary tables with load capacities of 50 kg or 200 kg, a polyurethane-coated roller conveyor (200 kg) and pneumatic actuators for door opening.

View details

SKU KN 125 HD

Blast Cabinet KN 125 HD Series

The KN 125 HD is a series of blast cabinets constructed entirely from 3 mm steel sheet. The series is offered in four configurations: sets 1 and 2 are equipped with an injector gun, while sets 3 and 4 use a pressure sandblaster. The pressure version delivers higher abrasive outlet velocity and approximately four times greater surface-cleaning efficiency compared with the injector version. Sets 2 and 4 include an abrasive separator that separates abrasive from dust and prevents fine abrasive from being drawn into the dust collector; this is recommended when using fine abrasives such as corundum or glass beads, and when cleaning heavily contaminated items.

View details

SKU KP 115

Blast Cabinet KP 115

The KP 115 is a blast cabinet available in four configurations (sets 1–4) with different equipment levels. Sets 1 and 2 are equipped with an injector gun (BNP with boron carbide nozzle), while sets 3 and 4 use pressure sandblasters. The pressure versions provide approximately four times higher cleaning efficiency than the injector versions. Sets 2 and 4 include an abrasive separator (cyclone type) that separates abrasive from dust and prevents fine abrasive from being drawn into the dust collector. The cabinet can be supplied with opening side walls (standard) or with a front wall that lifts upward on gas springs. Compatible abrasives include corundum, glass beads and fine steel grit.

View details

SKU KPC SZ

SZ type pressure blasting cabinets (KPC 70 SZ / KPC 90 SZ / KPC 115 SZ / KPC 140 SZ)

The SZ series are pressure-type blasting cabinets equipped with a 13 dm³ pressure pot mounted beneath the cabinet hopper. The pressure principle produces higher nozzle exit velocities compared to an injector system, increasing cleaning efficiency by approximately 4 times. The machines are suitable for cleaning and structuring surfaces using abrasives such as electrocorundum, fine steel grit, glass beads, etc. The abrasive circulates in a closed circuit; dust from workpieces and broken abrasive is extracted from the chamber by a fan to a dust extractor with a polyester tissue-paper filter cartridge (optional but required accessory). The cabinet is a welded structure of steel sections and 2 mm steel sheet. The working table is made of 3 mm perforated sheet on a flat-bar grate. All surfaces are powder coated. Internal lighting consists of 50 W / 230 V LED lamps. The inspection window comprises a tempered glass pane and an outer polycarbonate plate. Through-holes in the side walls allow blasting of long workpieces such as pipes and angles. A tungsten carbide nozzle is included. Cabinets with alternative dimensions and a reinforced rotary table are available on request.

View details

SKU KPI 115 SA

Automatic Blast Cabinet with Rotary Table and Satellites

Blast cabinet for automatic cleaning and surface structuring using abrasive media such as electrocorundum, fine steel grit, glass beads and similar. The work cycle is controlled by a Siemens S7-1200 PLC controller; the operator's tasks are limited to loading and unloading parts. The set includes the cabinet, an abrasive separator (SC 600) and a dust extractor (FOS 4 N) with automatic filter cleaning.

View details

SKU PB-KO-25

Vacuum sandblaster PB-KO-25

Compact dust-free sandblaster with a closed loop of abrasive circulation, built on the base of a pressure tank with a capacity of 25 litres. The control system with tank decompression provides fast automatic filling of the tank upon cessation of work. Suitable for engraving inscriptions in stone and ornaments on glass. Recommended abrasives: aluminium oxide, silicon carbide, glass beads or fine steel grit. Not recommended for cleaning steel structures, as dust-free operation requires strict contact between the head and the cleaned surface, which cannot be achieved on structural sections.

View details

SKU PIZR 45 C

Vacuum Sandblaster PIZR 45 C

Vacuum sandblaster with a closed loop for abrasive circulation. Suitable for engraving inscriptions in stone and ornaments on glass. Recommended abrasives include aluminium oxide, silicon carbide, glass beads and fine shot. Not recommended for cleaning steel structures, as dust-free operation requires firm contact between the head and the surface, which cannot be achieved when cleaning sections. Supplied complete with hoses, solid steel head with brush and nozzles, pressure reducer with water separator, embedded sieve and abrasive separator, 2 brushes, a set of spare nozzles and a spare filter for the suction unit. Warranty: 24 months (Poland). Supplied with full documentation and CE declaration. Not subject to UDT supervision.

View details

SKU TEPKFC 250 S

Cabinet blast cleaning unit KFC 250 S

The KFC 250 S cabinet blast cleaning unit is a complete set for removing rust, mill scale and other non-sticky contamination from workpieces using abrasives such as steel grit, electrocorundum, glass beads and similar media. The abrasive operates in a closed circuit and is cleaned of contamination in the separator at each cycle. The set comprises four units: blasting cabinet KFC 250 S, dust filter unit FOS-6 N, abrasive separator SC-430 and pressure blasting machine KO-40. The system is complete and ready for operation after connection to electrical supply and compressed air. Optional accessories are available: airlocks for long workpieces, turntables (50 kg or 200 kg capacity), rubber-coated roller conveyor (200 kg) and pneumatic cylinders for door opening.

View details

SKU TEPPIZR 45 C

Vacuum Sandblaster PIZR 45 C

Vacuum sandblaster with a closed loop for abrasive circulation. Suitable for engraving inscriptions in stone and ornaments on glass. Recommended abrasives are aluminium oxide, silicon carbide, glass beads and fine shot. The machine is not recommended for cleaning steel structures, as dust-free operation requires the head to be in close contact with the surface, which cannot be achieved when cleaning sections. Supplied complete with hoses, solid steel head with brush and nozzles, pressure reducer with water separator, embedded sieve and abrasive separator, plus 2 brushes, a set of spare nozzles and a spare filter for the suction unit. Comes with a 24-month warranty, full documentation and CE declaration of conformity. Not subject to UDT supervision.

View details
