Key features

Four configurations with different equipment levels
Pressure version delivers ~4× higher cleaning efficiency
Cyclone separator keeps dust collector clean
Gas-spring front wall lift available
Compatible with corundum, glass beads and steel grit

SKU KP 115

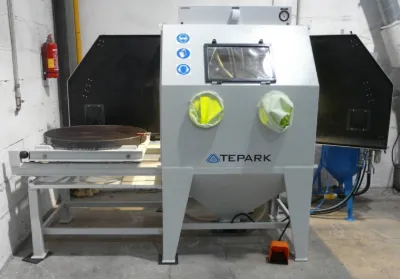

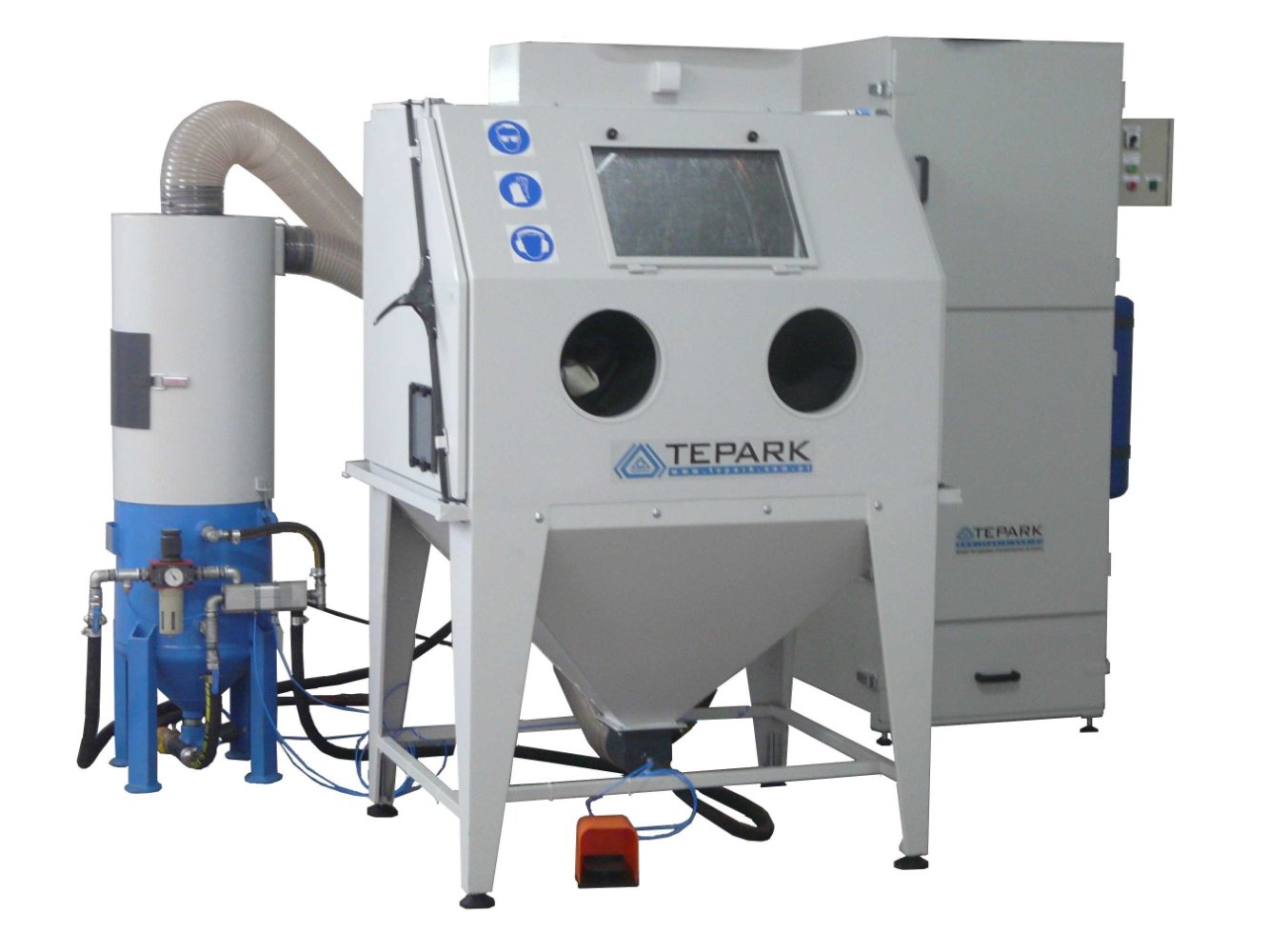

Blast Cabinet KP 115

The KP 115 is a blast cabinet available in four configurations (sets 1–4) with different equipment levels. Sets 1 and 2 are equipped with an injector gun (BNP with boron carbide nozzle), while sets 3 and 4 use pressure sandblasters. The pressure versions provide approximately four times higher cleaning efficiency than the injector versions. Sets 2 and 4 include an abrasive separator (cyclone type) that separates abrasive from dust and prevents fine abrasive from being drawn into the dust collector. The cabinet can be supplied with opening side walls (standard) or with a front wall that lifts upward on gas springs. Compatible abrasives include corundum, glass beads and fine steel grit.

Interior working chamber dimensions (H × W × D) – KPI 115 / KPC 115 SZ: 800 × 1150 × 900 mm
Interior working chamber dimensions (H × W × D) – KPI 115 (set 1) / KPC 115 S (set 4): 840 × 1150 × 900 mm
Table load capacity: 150 kg
Illumination – KPI 115 (sets 1 & 2) / KPC 115 SZ (set 3): 2 × 50 W LED, 230 V
Illumination – KPC 115 S (set 4): 2 × 18 W fluorescent 230 V (standard) or 2 × 150 W halogen
Interior lining: Rubber lining (KPI 115 S, KPC 115 SZ, KPC 115 S)
Door opening: Side walls open (standard); front wall with gas springs as option
Through holes in side walls: Yes – for cleaning long items
Safety limit switches: Prevent starting when doors are open (KPI 115 S, KPC 115 SZ, KPC 115 S)
Injector gun (sets 1 and 2): BNP with boron carbide nozzle
Dust collector – set 1 (FOR-1): Fan 0.55 kW / 400 V; paper filter cartridge 8 m²; mechanical filter cleaning; filtration efficiency 99.5 %
Dust collector – set 2 (FOS-3 N): Fan 0.75 kW / 400 V (built-in, silenced); paper filter cartridge 21 m²; self-cleaning with compressed air pulses; filtration efficiency 99.9 %
Dust collector – set 3 (FOS-2 N): Fan 0.55 kW / 400 V (built-in, silenced); paper filter cartridge 21 m²; automatic filter cleaning with compressed air pulses; filtration efficiency 99.5 %
Dust collector – set 4 (FOS-4 N): Fan 1.1 kW / 400 V; paper filter cartridge 21 m²; self-cleaning with compressed air pulses; filtration efficiency 99.9 %
Abrasive separator (sets 2 and 4) – SC 430 / SCI 430: Cyclone separator; sieve for coarse impurities; 40 l abrasive bin; polyurethane suction hoses
Pressure sandblaster – set 3 (KO-13-10): Pressure tank 10 l; pneumatic control via foot switch; MIKRO metering valve; pressure reducer with water separator; boron carbide nozzle Ø 6.5 mm
Pressure sandblaster – set 4 (KO-40): Pressure tank 40 l; control valve PZS 50 via foot switch; MIKRO metering valve; pressure reducer with water separator; silicon carbide nozzle Ø 6.5 mm
Additional equipment – rotary table options: Rotary table 50 kg; rotary table 200 kg on trolley with trackway; rotary table 500 kg on trolley with trackway
External dimensions (H × W) – from technical drawing: 1860 mm height; 909 mm width (front); 1139 mm width (side)
Brand: Tepark
