Key features

Direct toolhead adjustment
Precise and fast form tool setting
Compatible with DT and DRC toolheads
Included gauge for zero setting verification

SKU MIREM19-75

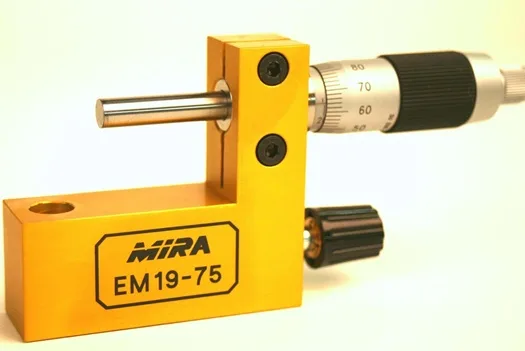

EM19-75 Micrometer with Gauge

The EM19-75 micrometer is designed for direct toolhead adjustment on the valve seat refacing unit. Enables precise and fast setting of the form tool when using DT and DRC toolheads. The included gauge allows verification of the micrometer's zero setting.

Included: Micrometer with gauge and stop, calibration gauge, hook spanner, instruction manual, mini suitcase (plastic)
Compatibility: DT and DRC toolheads
Brand: Mira

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
