Key features

Compatible with VG-91 and Centronic
Expands range of valve seat diameters
Same accuracy as mounted DRC-01
Easy and precise spindle exchange

SKU MIRDRC

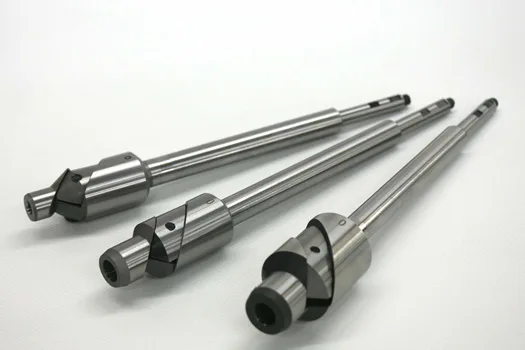

DRC Toolheads for VG-91 and Centronic

DRC toolheads are designed for use with the VG-91 valve seat refacing unit and Centronic. They enable processing of a wider range of valve seat diameters with the VG-91, at the same accuracy as the mounted DRC-01 in the VG-91 spindle guide. Spindles can be exchanged easily and precisely according to the VG-91 instruction manual.

DRC05 diameter range: 16–25mm valve seat diameter
DRC1 diameter range: 21–45mm valve seat diameter
DRC2 diameter range: 37–55mm valve seat diameter
Compatibility: VG-91 and Centronic
Brand: Mira

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
