Key features
- Two-stage pump for fast and precise pressing
- Workbed adjustable at 6 heights
- Side-adjustable cylinder with positioning scale
- Interchangeable press adapter for versatile attachments
- Pneumatic foot pedal enables hands-free operation
- Fully welded frame for solid construction
SKU MAMSP30XHAM

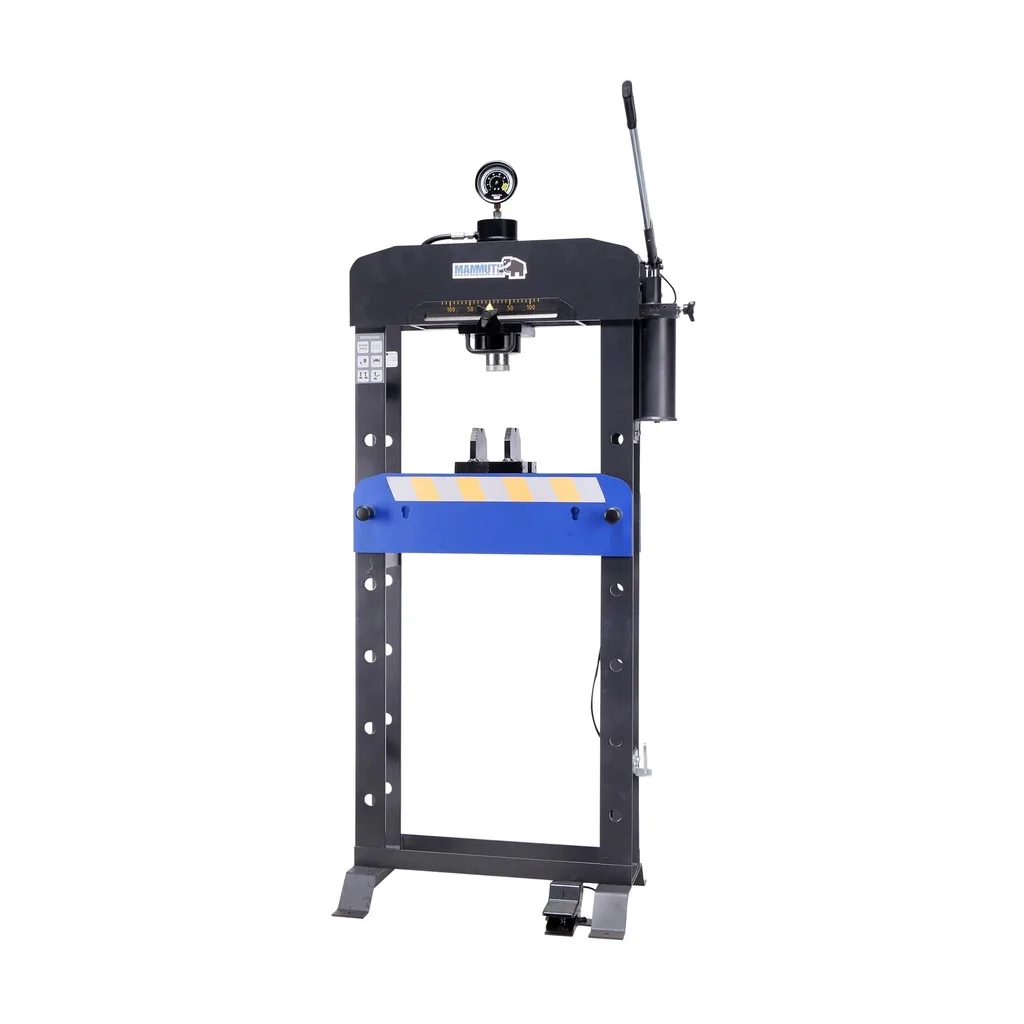

Workshop press air hydraulic with foot pedal 30 tons
This Mammuth bearing press is suited for installing bearings, pressing shafts and bolts, and other precise pressing tasks. The press features a fully welded frame and is supplied with 2 press blocks. The two-stage pump provides fast initial travel followed by precise pressing. The workbed is easily adjusted and secured at 6 different heights. The cylinder is side-adjustable with a scale for accurate positioning, and the press adapter is interchangeable for use with other attachments. A pneumatic foot pedal enables hands-free operation. Air connection 1/4 NPT, working pressure 8–12 bar.
- Capacity
- 30 ton
- Workbed width
- 540 mm
- Workbed depth
- 148 mm
- Minimum working height
- 75 mm
- Maximum working height
- 915 mm
- Cylinder stroke
- 180 mm
- Cylinder diameter
- ø60 mm
- Working air pressure
- 8–12 bar
- Air connection
- 1/4 NPT
- Oil capacity
- 1.2 L
- Oil type
- OKCH68
- Brand
- Mammuth
