Key features
- Lifting capacity up to 1000 kg
- Maximum lifting height of 160 cm
- Compact design for narrow passages
- Handle and foot pedal operation
- High-strength steel frame for improved safety
- Parking brake on nylon wheels
SKU MAMPS10M16

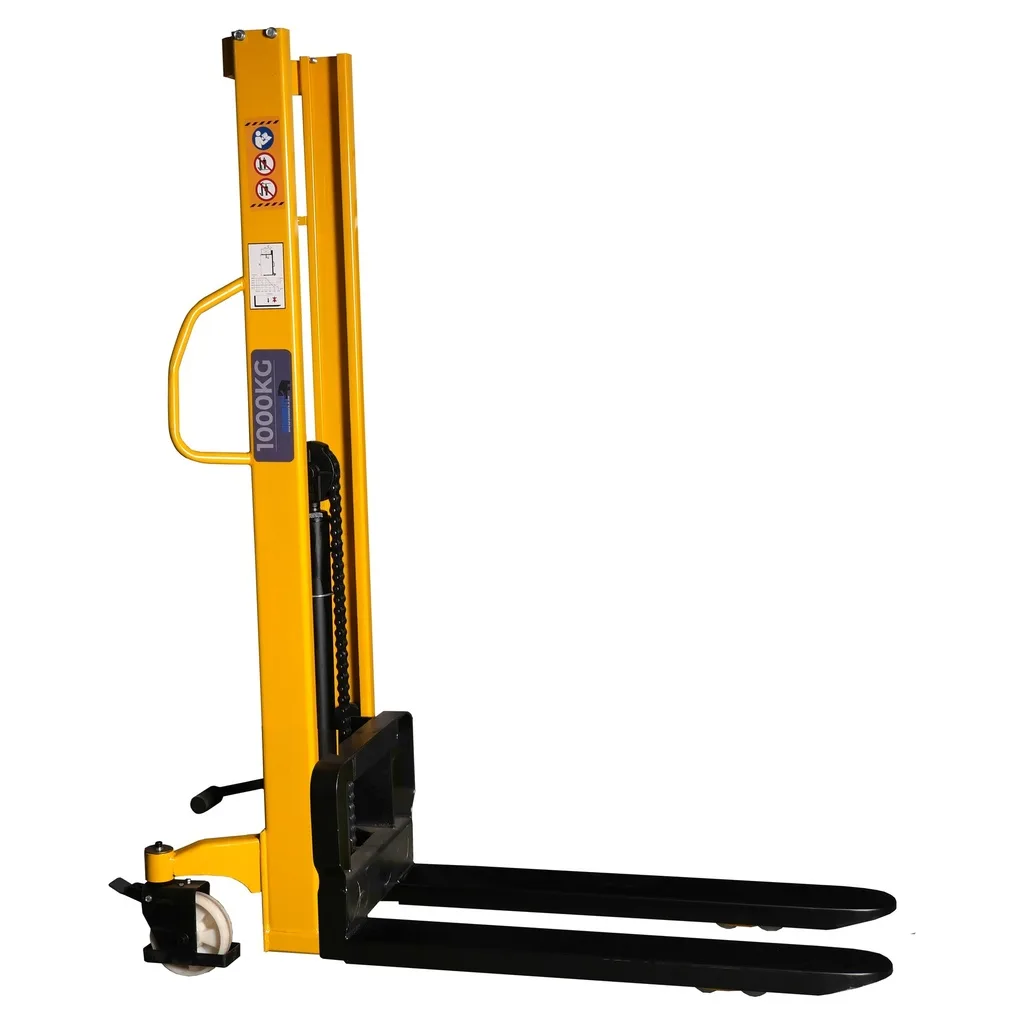

Mammuth manual stacker 1000 kg, 160 cm lifting height
Manual straddle-leg stacker from Mammuth for manual transport, stacking, and pallet positioning. Lifting capacity of 1000 kg and a maximum lifting height of 160 cm, suitable for small warehouses and retail floors. Compact design with a minimised turning radius for use in narrow passages. Fitted with nylon wheels including a parking brake, a C profile mast, and double front wheels. The handle and foot pedal lifting mechanism allows smooth operation. The frame is made of high-strength steel with a pressure-resistant caster bracket for improved operator safety.
- Lifting capacity
- 1000 kg
- Fork size (length x width x height)
- 1150 x 160 x 55 mm
- Wheel material
- Nylon
- Lifting speed (loaded)
- 16 mm/sec
- Turning radius
- 1600 mm
- Fork overall width
- 565 mm
- Lifting height range
- 85–1610 mm
- Total length
- 1750 mm
- Total width
- 750 mm
- Lowering speed (loaded)
- Controllable
- Mast lowered height
- 2005 mm
- Mast extended height
- 2005 mm
- Brand
- Mammuth
Request a quote for this product
Send us an enquiry and we'll reply with price and availability.
