Key features

Flexible, heat-resistant epoxy adhesive
Absorbs and dissipates impact and vibration
Increases flexibility at elevated temperatures
Adhesion promoter for a wide range of substrates
Proven for fusion-cast high-alumina ceramic wear tiles

SKU HYLhylomar-tilebond-flexible-impact-resistant-epoxy-adhesive

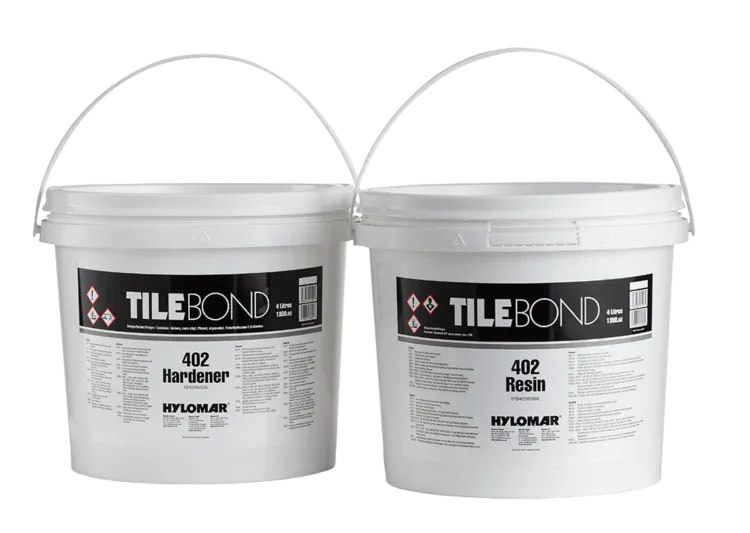

Hylomar Tilebond – Flexible Impact Resistant Epoxy Adhesive

Tilebond is a flexible, heat-resistant epoxy adhesive for permanently bonding surfaces subject to impact, vibration and deflection. The adhesive absorbs and dissipates impacts and vibrations along the bond line, preventing cracking or dislodging of tiles. It recovers to its normal state after shock loading and forced deformation. Exposure to temperatures up to 150 °C increases the adhesive's flexibility, unlike conventional epoxy adhesives which become more rigid at elevated temperatures. An adhesion promoter increases bond strength to a variety of substrates. Tilebond has a proven track record in bonding fusion-cast high-alumina ceramic tiles for protection against abrasive wear in the transport of fuel, coal and shale, with applications in coal preparation plants and coal-fired power stations. Available in 1-litre and 8-litre tins.

Viscosity (Brookfield RVT, Spindle No.7 / 2.5 rpm, BS 5350: Part B8): 2000 poise at 20 °C (68 °F)
Max. service temperature: 150 °C (302 °F) continuous; occasional excursions to 180 °C (356 °F) permissible for up to 24 hours
Impact strength (ASTM D950-82): 17.3 kJ/m²
Vibrational fatigue strength (ASTM D3166-73(79)): 6.0 N/mm² at 10⁷ cycles
Lap shear strength (BS 5350, Part C5): 8.5 N/mm² (18 h), 9.0 N/mm² (24 h), 12.5 N/mm² (5 d)
Lap shear strength, heat cured (1 hr 120 °C, BS 5350, Part C5): 6.2 N/mm² (900 psi)
Lap shear strength after 14 days heat soaking at 150 °C: 6.0 N/mm² (870 psi)
Torque adhesion strength (CEGB SM 85/2926): 57 Nm (24 h), 74 Nm (5 d)
Torque adhesion strength after heat soaking at 125 °C (CEGB SM 85/2926): 52 Nm (38.5 lbf.ft)
Tensile strength (BS 2782, 320 °C): 15.0 N/mm² (2170 psi)
Elongation at break (BS 2782, 320 °C): 8 %
Elastic modulus (BS 2782, 320 °C): 1350 N/mm²
Flexural strength (BS 2782, 32 °C): 22.0 N/mm² (3190 psi)
Compression yield strength (BS 2782, 345A): 21.5 N/mm² (3120 psi)
Shore D hardness (ASTM D1484 / ISO R868): 72
Pack sizes: 1 and 8 litre tins
Brand: Hylomar

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.

Hylogrip 2143 thread locking

Hylogrip HY2143 is a fast-curing, one-component anaerobic thread locker. Medium strength, medium viscosity, suitable for bonding and sealing all threaded metal assemblies. When Hylosil 2143 is fully cured, it is highly resistant to heat, corrosion, vibrations, water, gases, oils, hydrocarbons and many chemicals. The function is identical to Loctite 243. - 50 ml. Uncured material - Solvent content 0% Cured material Instructions for use For best results, ensure that both surfaces are clean, dry and free from contamination such as oil or grease. Surfaces can be cleaned with acetone or equivalent product. Apply before assembly sufficient product to fill the threads, place the nut on the thread and tighten to the desired torque. Retighten if necessary. Hylogrip HY2143 can easily be wiped off with a cloth moistened in acetone or similar.

Datasheet View details

SKU HYL5177050M

Hylogrip 5177 thread sealant

Hylogrip HY5177 is a medium strength pipe sealant for metal threads. It has high viscosity suitable for bonding all threaded metal units. It is particularly useful for quick sealing of threaded joints in pipes, especially where the joint is exposed to vibrations. The properties of Hylomar 5177 correspond to Loctite 577. When fully cured, it is highly resistant to heat, corrosion, vibrations, water, gases, brake fluid, oils, hydrocarbons and many chemicals. Typical applications Hylogrip HY5177 is a medium strength thread sealing adhesive for general use on all metal threaded components, especially those within pipes. HY5177 has a high breakaway torque, while allowing easy assembly and disassembly. Because the compound cures inside the joint, it not only prevents leakage from the pipe system, but also excludes the surrounding environment from the joint surface. This helps reduce the likelihood of crevice corrosion, especially where the joint is submerged in seawater. Uncured material disassembled) Cured material - Temperature range -55ºC to 150ºC Instructions for use For best results ensure that both surfaces are clean, dry and free from contamination such as oil or grease. Surfaces can be cleaned with acetone or equivalent product. Before assembly apply sufficient product to fill the threads, place the nut on the thread and tighten to the desired torque. Re-tighten if necessary. Hylogrip HY5177 can easily be wiped away with a cloth moistened in acetone or similar solvent.

Datasheet View details

SKU HYLGasket 3400

Hylomar Gasket 3400

Hylomar Gasket 3400 is a modified anaerobic curing, flexible sealant designed to become a Formed in Place (FIP) gasket when cured. It offers good temperature resistance and high resistance to fretting. Cure is initiated when the compound is in contact with metal ions under anaerobic conditions. Cure rate and final strength depend on the metals being joined and the operating temperature. The product can be used as a gasketing compound between machined surfaces and is suitable for sealing mating faces on engines and transmission components where resistance to temperature and vibration is required. Available in 300 ml cartridges. Apply to clean, dry, contamination-free surfaces. Excess compound can be removed with acetone or another suitable solvent.

View details

SKU HYLhylo-clean-cleaner-degreaser

Hylo® Clean Cleaner/Degreaser

Hyloclean is a specially blended fluid that is highly effective at removing used Hylomar jointing compound from disassembled joint surfaces. The mix of solvents also makes it suitable for cleaning and degreasing surfaces prior to use with Hylomar adhesives and sealants. It is also effective at removing uncured anaerobic, uncured silicone and uncured epoxy products. Typical applications include: removing Hylomar M, Universal Blue, Advanced Formula and Aerograde, uncured Hylogrip anaerobic product, Hylobond, acrylic adhesives and Hylotyte Red, as well as degreasing metal components to remove oils, lubricating fluids, metal cuttings and dirt. The product does not leave a residue and evaporates quickly after application. Available in a 400 ml aerosol.

View details

SKU HYLhylomar-advanced-formulation

Hylomar® Advanced Formulation

Hylomar Advanced Formulation is a solvent-free, non-setting and non-hardening compound suitable for sealing joints and close-fitting flanges. It can be used as a gasket dressing and enhances the sealing capability of all types of gaskets. The product is resistant to automotive fluids, mineral oils, synthetic lubricants and fuels. The wide operating temperature range (-55 °C to +250 °C) makes it suitable for demanding applications. It is designed to fill and seal surface imperfections in joint surfaces, and parts can be assembled immediately or left indefinitely before making the joint. Available pack sizes: 85 g tube, 250 ml tin, 300 ml cartridge.

View details

SKU HYLHYLOMAR-ADVANCED-FORMULATION-HV

Hylomar Advanced Formulation HV

Hylomar Advanced Formulation HV is a solvent-free, non-setting and non-hardening, high-viscosity, non-slumping thixotropic gel intended for sealing joints. It can be used as a gasket dressing and flange sealant, enhancing the sealing capability of all types of gaskets and flanges. It is resistant to automotive fluids, mineral oils, synthetic lubricants and fuels. The product is formulated with specific rheological properties to form an effective seal on close-fitting joint surfaces. Parts can be assembled immediately or left indefinitely before making the joint. Operating temperature range: -55 °C to +250 °C. Available in 250 ml tin and 300 ml cartridge.

Datasheet View details

SKU HYLhylomar-exhaust-assembly-paste

Hylomar® Exhaust Assembly Paste

Hylomar Exhaust Assembly Paste is formulated in accordance with current health requirements and is able to withstand temperatures of up to 1000 °C. Intended for the assembly of exhaust components.

View details

SKU HYLhylomar-exhaust-repair-putty

Hylomar® Exhaust Repair Putty

Hylomar Exhaust Repair Putty is formulated in accordance with current health requirements and is able to withstand temperatures of up to 1000 °C. Suitable for repair of exhaust systems.

View details

SKU HYLhylomar-lmf-universal-jointing-compound

Hylomar LMF Universal Jointing Compound

Hylomar LMF is a solvent-free, high viscosity, non-setting jointing compound based on Hylomar polymer technology. It is resistant to industrial lubricants, fuels, gasoline, kerosene, water and air. The compound can be used to replace traditional gaskets or as a gasket dressing to enhance sealing performance. The product does not harden or set, and parts can be assembled immediately or left indefinitely before making the joint. It is suitable for use in high-speed production processes and allows easy disassembly. Typical applications include close-fitting flanges against lubricants and automotive fluids, cylinder liners to engine blocks, cylinder head cam caps, electric motor end plate covers and fuel injector gland nuts.

View details

SKU HYLHYLOMAR-M-LIGHT-MEDIUM-HEAVY-UNIVERSAL-JOINTING-COMPOUND

Hylomar® M (Light, Medium, Heavy) – Universal Jointing Compound

Hylomar M is a non-hardening, non-setting jointing and gasket compound resistant to a wide range of fluids and gases, including industrial fluids, oils, gasoline, kerosene, water/methanol and water/glycol mixtures, and turbine and piston engine combustion products. The product is dichloromethane free. Available in three viscosity grades (light, medium, heavy), it is supplied in pack sizes ranging from a 40 ml tube to a 1 litre tin. It can be used with or without a gasket on close-fitting metal and plastic components and exhibits thixotropic properties suitable for vertical surfaces and underside joints. Typical applications include inlet manifolds, timing case covers, gearboxes, thread sealing, flat machined surfaces, oil and water pumps, cylinder head gaskets, and gas turbines. Operating temperature range: -50 °C to +250 °C.

Datasheet View details

SKU HYLHYLOMAR-SPEZIAL

Hylomar® Spezial

Hylomar AF Spezial is a solvent-free, non-setting and non-hardening sealant. It reduces the effect of environmental ingress on joint surfaces and helps to reduce filiform corrosion. It is a one-component product with OEM approval. The operating temperature range is -50 °C to 250 °C, making it suitable for applications such as electric vehicle battery packs, inverters, steering systems and electric motors. The product is resistant to water, salt water, lubricants, fuels and coolants. Available pack sizes: 12 × 300 ml (cartridge), 20 kg (keg) and 200 kg (drum).

Datasheet View details

SKU HYLHYLOMAR-UNIVERSAL-BLUE-NON-SETTING-GASKET-AND-JOINTING-COMPOUND

Hylomar® Universal Blue – Non-Setting Gasket and Jointing Compound

Hylomar Universal Blue is a non-setting gasket and jointing compound with broad chemical resistance. It withstands industrial fluids, oils, petroleum and synthetic diester lubricating oils, gasoline, kerosene, water/glycol and methanol/water mixtures, air, and turbine and piston engine combustion products. Operating temperature range is -50 °C to +250 °C. The product is non-flammable, does not harden and provides unlimited assembly time. It permits metal-to-metal contact and can be used as a non-curing thread sealant. Suitable for inlet manifolds, gearboxes, cylinder heads, pumps and most machined surfaces. Available in light, medium and heavy viscosity grades, in pack sizes of 40 g tube (blister card), 40 g tube (carton), 100 g tube (carton) and 350 g cartridge.

Datasheet View details

SKU HYLhylosil

Hylosil®

Hylosil is a room temperature vulcanising (RTV) silicone compound. It is a high-performance engineering grade sealant intended for use in the automotive industry and general manufacturing.

View details

SKU HYLhylosil-instant-gasket

Hylosil® Instant Gasket

Hylosil Instant Gasket is a room temperature vulcanising (RTV) silicone compound. It is a high-performance engineering grade sealant intended for use in the automotive industry and general manufacturing.

View details

SKU HYLhylotyte-red-100

Hylotyte® Red 100

Hylotyte Red 100 is a synthetic, semi-hardening jointing compound with good gap-filling properties. It is resistant to a wide range of fluids, particularly water (including salt water), anti-freeze, and synthetic oils.

View details

SKU HYLM5101

Hylo®Bond M5101

Hylo®Bond M5101 is a two-component structural adhesive for bonding metals and some plastics.

View details

SKU HYLM511

Hylo®Bond M511

Hylo®Bond M511 is a two-component structural adhesive for bonding metals and some plastics.

View details

SKU HYLMS60

Hylo®Flex MS60 MSP Based Sealant

HYLO®FLEX MS60 is a flexible, high-strength sealant and adhesive based on MS polymer. Suitable for a wide range of indoor and outdoor applications, it can be painted over with most acrylic and alkyd paints and carries no hazard labelling requirements. It is suitable for sealing and/or bonding almost any material, including wall panels, glass, mirrors, plastics (not recommended for PE, PP or PTFE), stone, concrete, metals, skirting boards, window sills, insulation and roofing. Supplied in a 290 ml cartridge. Apply between 5 °C and 30 °C to clean, dust- and grease-free surfaces. Full cure is typically achieved within 24 hours. Shore A hardness: 60°.

View details

SKU HYLPL32

Hylomar® Aerograde PL32 – Non-Setting Gasket & Jointing Compound

Hylomar Aerograde PL32 is a non-setting and non-hardening gasketing compound for use in the aeronautical industry. It was developed in conjunction with Rolls-Royce – Aerospace Division for sealing joints in turbine engines, meets Rolls-Royce specification MSRR 9055, and carries a NATO stock number. It is specified by OEMs worldwide. Operating temperature range: -50 °C to +250 °C. The compound is resistant to air, water and oils, turbine and piston engine combustion products, water/glycol and methanol/water mixtures, and petroleum and synthetic diester lubricating oils. Its thixotropic properties make it suitable for vertical and underside joints. It can be used on close-fitting metal and plastic components, as a non-curing thread sealant, and with or without a gasket. Available in three grades – Light, Medium and Heavy – with OMAT numbers 4/46, 4/47 and 4/48 respectively. Supplied in 100 g tubes.

Datasheet View details

SKU HYLPL32A

Hylomar® Aerograde Ultra PL32A – Non-Setting Sealant

Hylomar Aerograde Ultra PL32A is a non-setting and non-hardening gasketing compound formulated with non-chlorinated solvent for use in the aeronautical industry. It carries Rolls-Royce MSRR 9055 approval (OMAT 4/47A) and is suitable for use on metal and plastic close-fitting components, with or without a gasket. Operating temperature range: -50 °C to +250 °C. The product resists air, water and oils, turbine and piston engine combustion products, water/glycol and methanol/water mixtures, and petroleum and synthetic diester lubricating oils. Its thixotropic properties allow easy application to vertical and underside joints, and components can be readily disassembled after use. Available in 75 ml tube.

Datasheet View details
