Key features
- Forms double-curved panels with ease

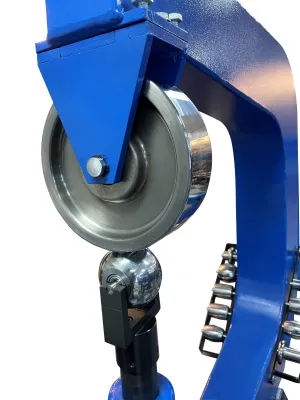

- Hardened, ground and polished rollers
- Upper roller adjustable in all directions
- Narrow cradle enables tight-curvature work
- Supplied with 5 lower rollers
- On-frame storage for up to 10 rollers
SKU KRAPMC1090003

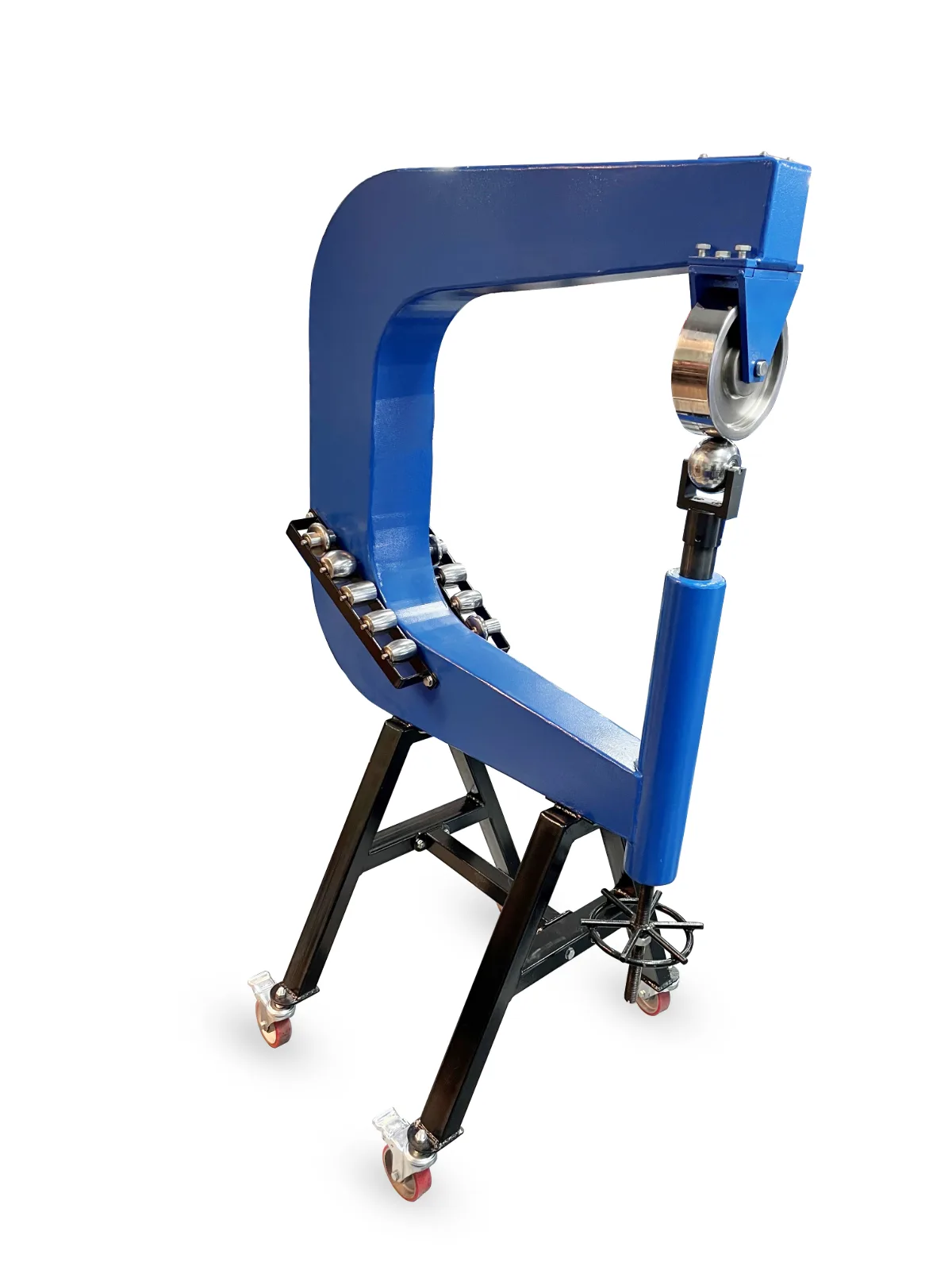

English wheel, professional 700 mm.
With an English wheel you can form double-curved panels in a simple way. Solid machine built after the same pattern as the machines from Lasse Jansson (Lazze): - Hardened, ground and polished rollers both top and bottom - Upper roller can be adjusted/angled in all directions for correct angle against the lower rollers - Thin axles and narrow cradle for lower rollers allow work on pieces with tight curvature - Supplied with 5 lower rollers. Additional rollers available as optional accessories - Powder-coated frame - The machine is supplied with wheels for easy mobility. - Mounting for up to 10 rollers on the side of the frame
- Brand
- Kraemer
- Weight
- 130 kg
- Material thickness
- steel 1.5 mm, alu. 1.9 mm.
- Max. working depth
- 700 mm.
- Max. sheet size
- 1400x1400 mm.
- Height
- 1300 mm.
- Packed dimensions
- 130x100x35 cm.
- Weight in box
- 130 kg.
Request a quote for this product
Send us an enquiry and we'll reply with price and availability.
