Product sheet

Key features

  • Enhances visibility when scribing steel
  • Effective for straightening dents
  • Reveals leaking valve seats
  • Blue colour clearly shows low spots

SKU DYK80400

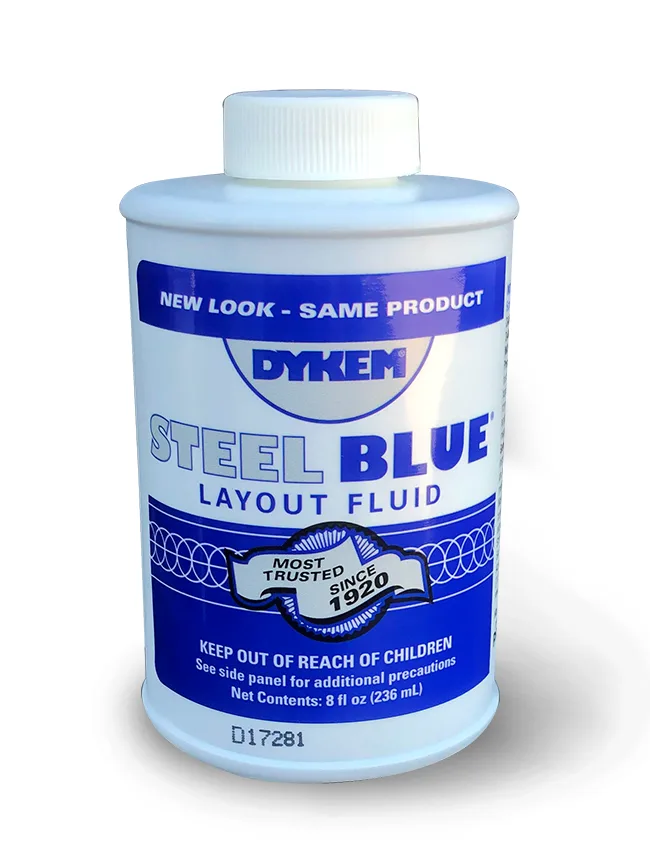

Dykem Steel Blue - Layout Fluid - Marking dye

Auto Workshop equipment

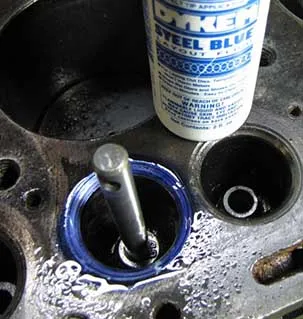

Marking dye for steel, used to increase visibility when scribing steel plate and similar, e.g. when producing brackets. Works excellently for panel straightening: the layout fluid is applied to the dented area. You then straighten it as best you can. Finally, file off the marking dye with a body file or similar. Areas that are too low stay blue, while the high areas turn shiny. Dykem also works well for checking whether ground valves seal properly. The dye is applied to the valve seat. The valve is then rotated with slight pressure against the seat. Leaking areas stay blue, the rest turns shiny. 236 ml.

Brand
Dykem

Request a quote for this product

Send us an enquiry and we'll reply with price and availability.
